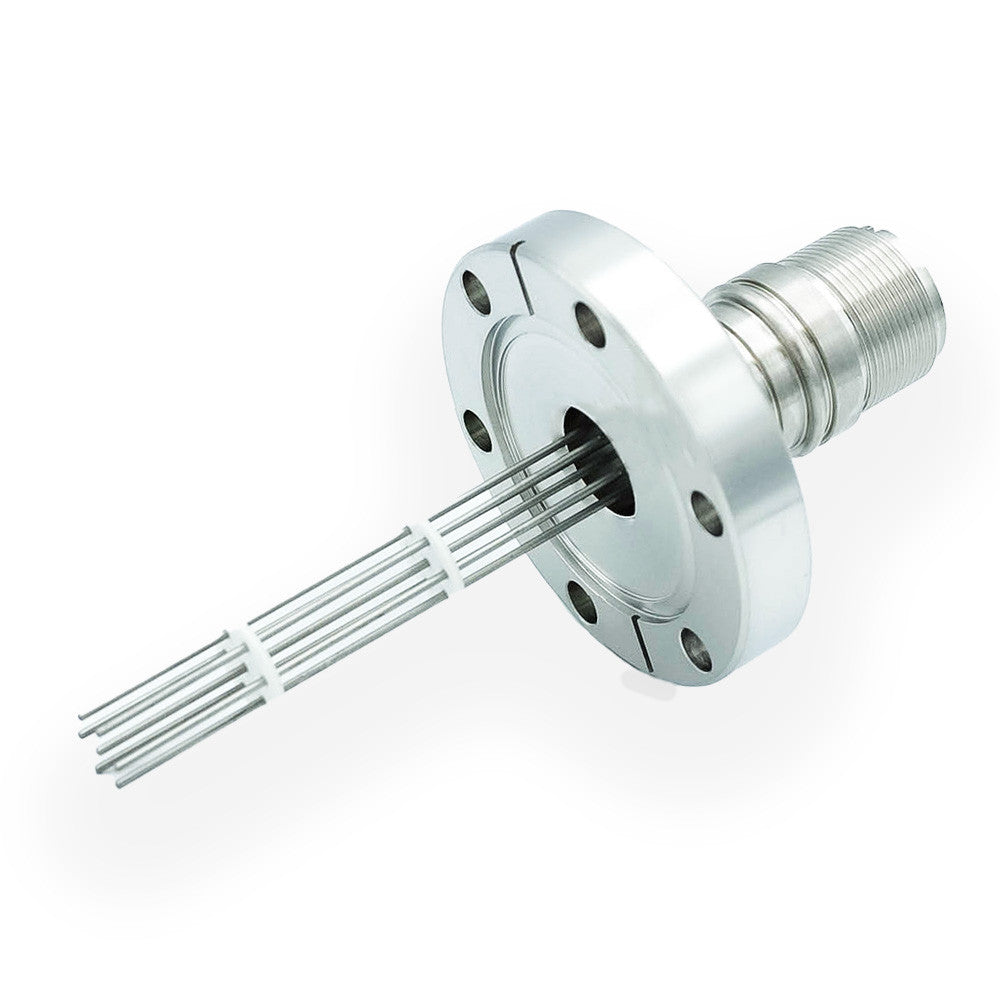

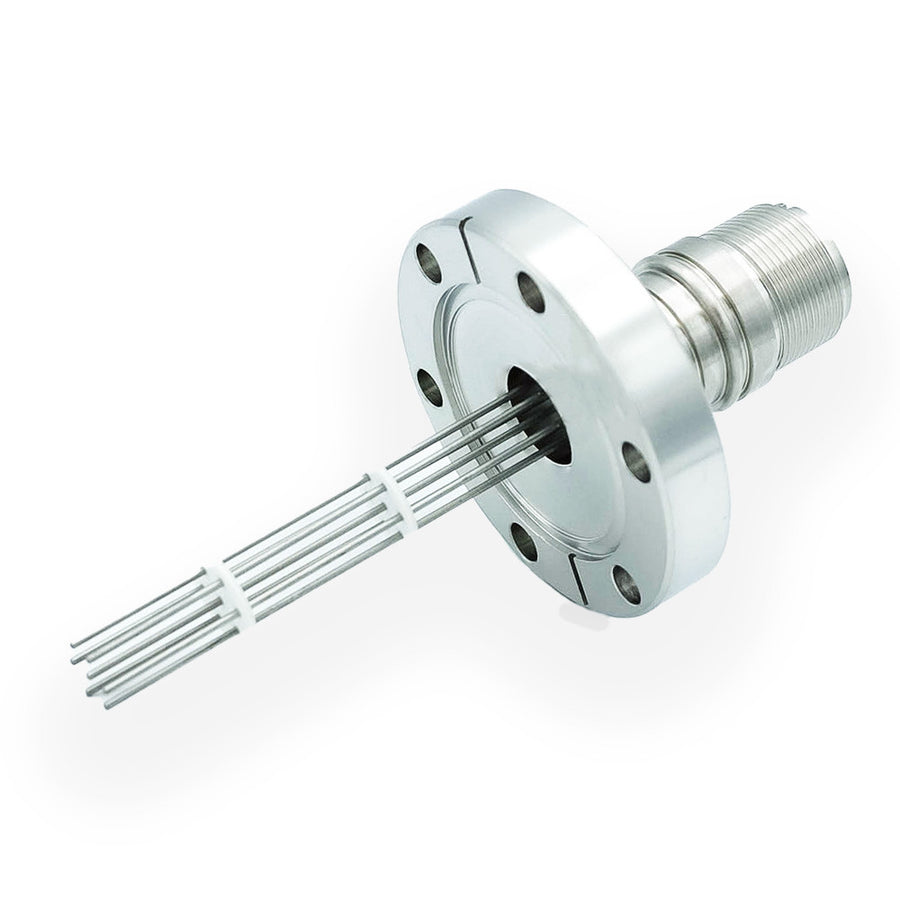

DN40CF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR

Allectra SKU: 267-075HV12K-7-C40
DN40CF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR

DN40CF MS FEEDTHROUGH, 7x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE MS CONNECTOR

Allectra SKU: 267-075HV12K-7-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate Air
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance MS style plug
  • Conductor Material MOLYBDENUM
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 12 kV DC
  • Max Current 7.5 Amps
  • Temperature Range -100°C to 450°C
