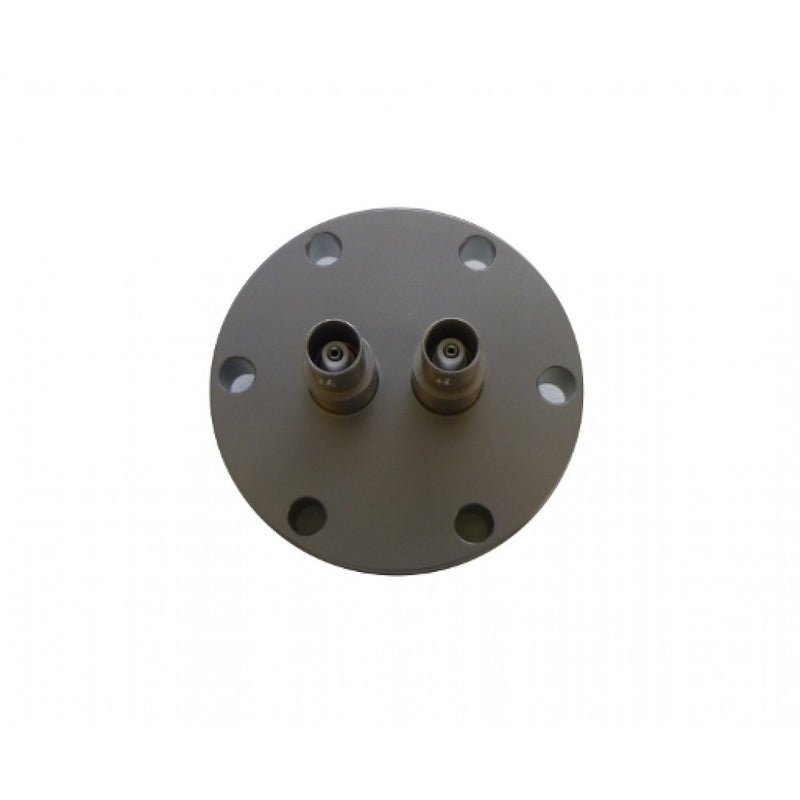

DN40CF MHV FEEDTHROUGH, 2 PINS, SINGLE SIDED, GROUNDED SHIELD, AIR SIDE CONNECTOR

DN40CF MHV FEEDTHROUGH, 2 PINS, SINGLE SIDED, GROUNDED SHIELD, AIR SIDE CONNECTOR

Allectra SKU: 241-MHV-C40-2
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance MHV
  • Pin Gender Air Female/Vacuum Male
  • Conductor Material Stainless steel 304
  • Vacuum Seal Ceramic
  • Body Material Ceramic/Stainless Steel
  • Voltage Rating 5 kV DC
  • Max Current 3 Amps
  • Magnetic Permeability Not constant
  • Temperature Range -200°C to 450°C (Air side Connector -65oC to 165oC)
  • Number of Pins 2
  • Conductor Diameter 2.4mm
