DN40CF MAGNETIC LINEAR SAMPLE TRANSFER DEVICE, TRAVEL 914mm

Allectra SKU: ZMLD209
DN40CF MAGNETIC LINEAR SAMPLE TRANSFER DEVICE, TRAVEL 914mm

DN40CF MAGNETIC LINEAR SAMPLE TRANSFER DEVICE, TRAVEL 914mm

Allectra SKU: ZMLD209
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Linear motion drive • High powered magnets allow drives to be horizontally or vertically mounted • Tactile control of sample transfer • Bakeable internal and external magnets • Complete drive bakeable to +250°C (max operating temp 120°C) • Leak rate < 1 x 10-10 mbar ls-1 • Pressure range 1 bar to 10-11 mbar • Position lock • 70mm OD conflat mounting flange • 19mm dia probe

Specifications

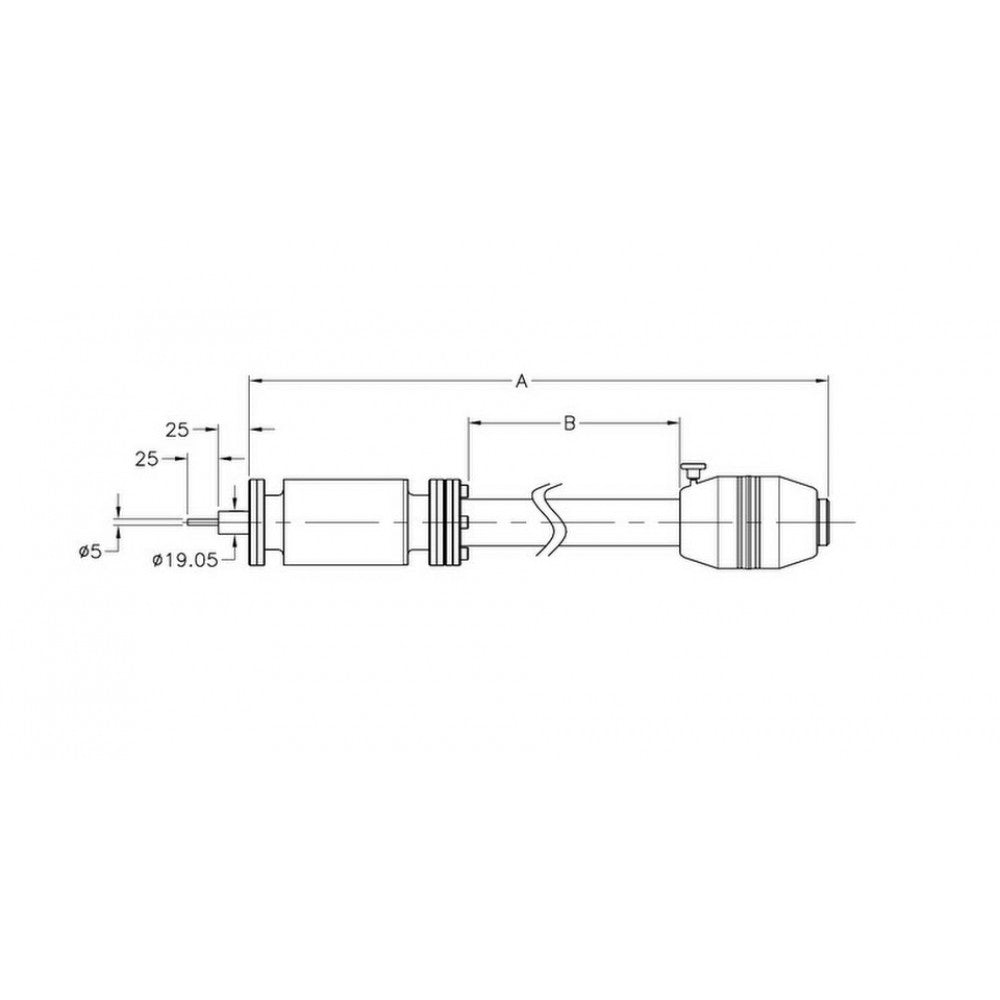

  • Size or DN DN40CF (2 ¾” OD flange)
  • Dimension A 1324mm
  • Dimension B 940mm
  • Travel 914mm
  • Max. Load Capacity 0.3 kg
