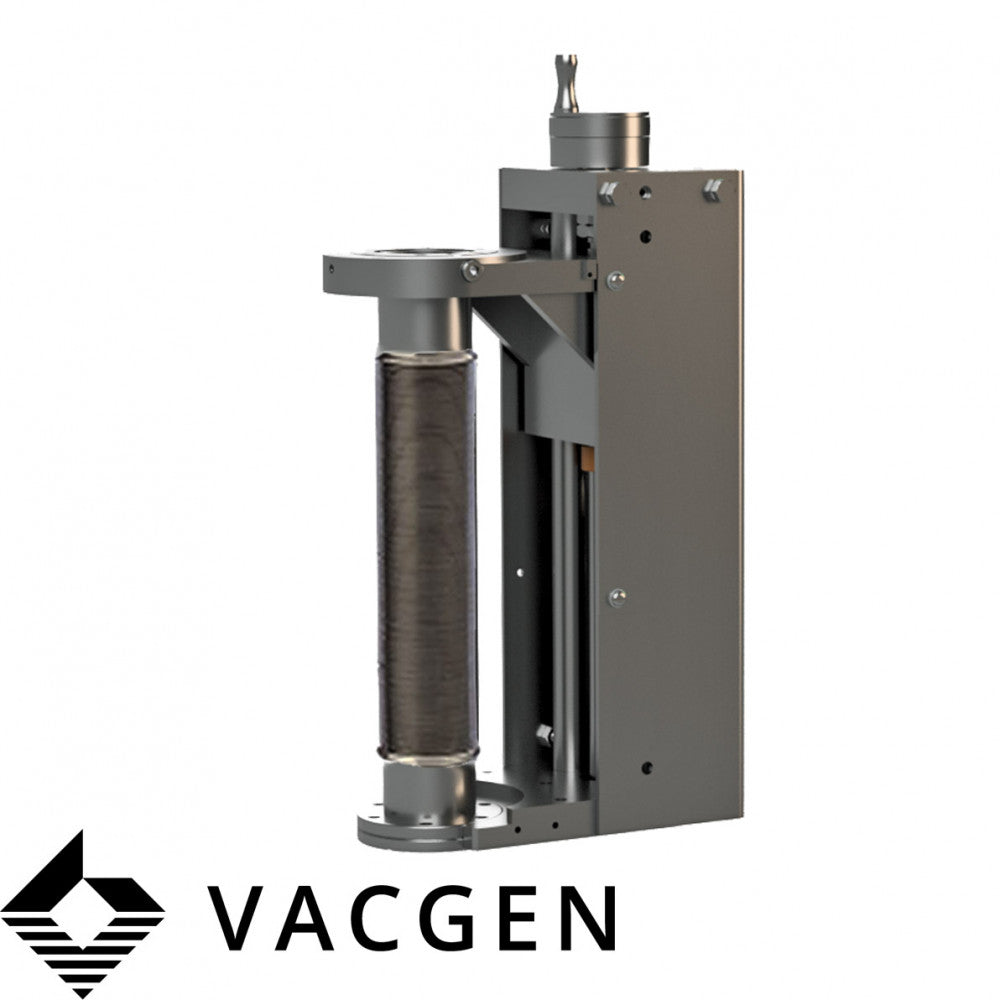

DN40CF LONG STROKE LINEAR Z-SHIFTER, BELLOWS SEALED, 150mm TRAVEL

Allectra SKU: ZTR1570
DN40CF LONG STROKE LINEAR Z-SHIFTER, BELLOWS SEALED, 150mm TRAVEL

DN40CF LONG STROKE LINEAR Z-SHIFTER, BELLOWS SEALED, 150mm TRAVEL

Allectra SKU: ZTR1570
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Clear bore of 33mm (without support tube) or larger bore Z only translations • Screw drive for all Z ranges • Z resolution 0.01mm manual • Linear motion per turn is 2mm (worm wheel drive 4 turns) • Top flange is 70mm OD Conflat tapped • Mounting flange is 70mm OD Conflat • Bakeout temperature to 230°C fully assembled • Any mounting orientation

Specifications

  • Size or DN DN40CF (2 ¾” OD flange)
  • Temperature Range -20°C to +200 deg°C
  • Dimension A 279mm (extended) 129mm (retracted)
  • Dimension B 314mm
  • Travel 150mm
  • Resolution 0.01mm
