DN40CF LINEAR Z-SHIFTER, BELLOWS SEALED, 25mm TRAVEL

Allectra SKU: ZLTM25
DN40CF LINEAR Z-SHIFTER, BELLOWS SEALED, 25mm TRAVEL

DN40CF LINEAR Z-SHIFTER, BELLOWS SEALED, 25mm TRAVEL

Allectra SKU: ZLTM25
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• 38mm Clear bore through edge welded bellows • Graduated scale in 1mm increments • Fully bakeable to 250°C • Operating temperature range -20°C to +200°C • Fitted with M6 tapped flanges • Positive stops at extremes of movement • Concentricity of flange bore within 0.5mm • 1.2Nm Approximate torque required to elevate • 200N Maximum applied axial load • 50N Maximum applied radial load • Operating pressure 1 bar to 10-11 mbar • Leak rate 1x10-10 mbar ls-1

Specifications

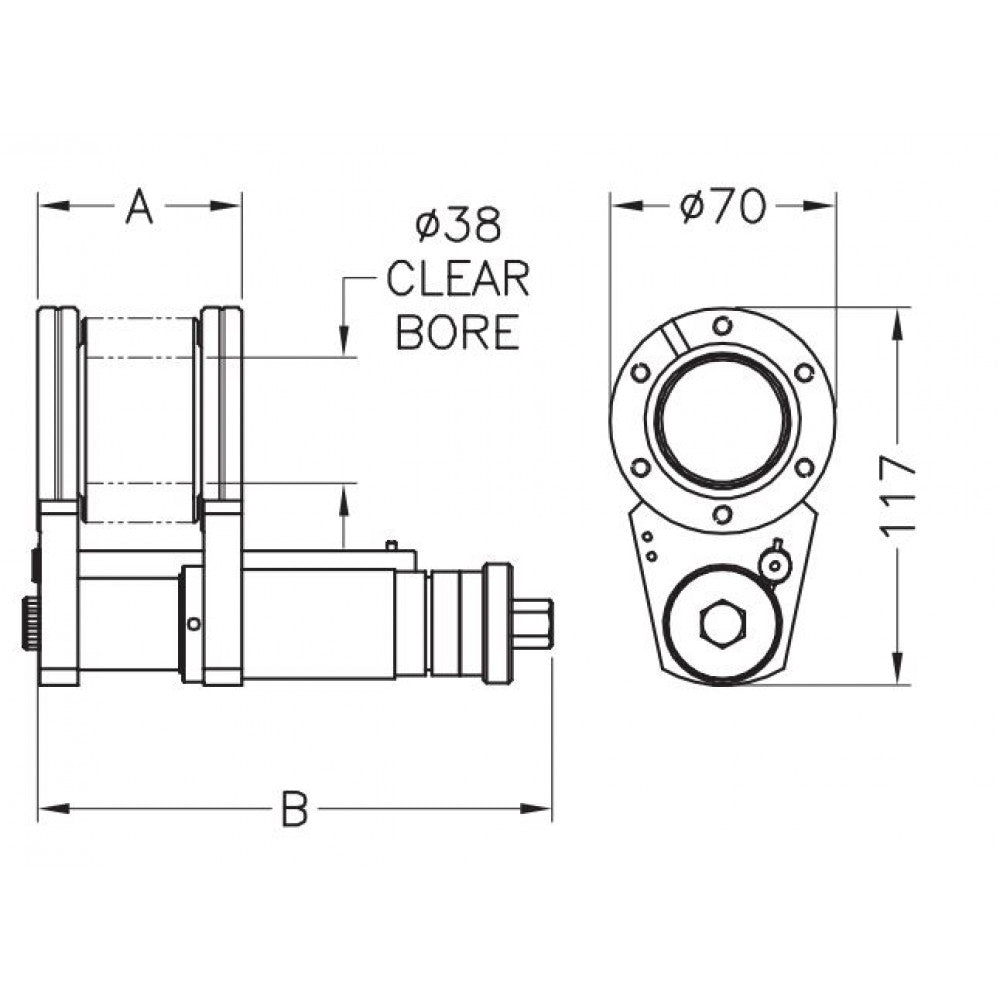

  • Size or DN DN40CF (2 ¾” OD flange) (TAPPED)
  • Dimension A 63mm (extended)
  • Dimension B 159mm (extended)
  • Operation Manual
  • Travel 25mm
