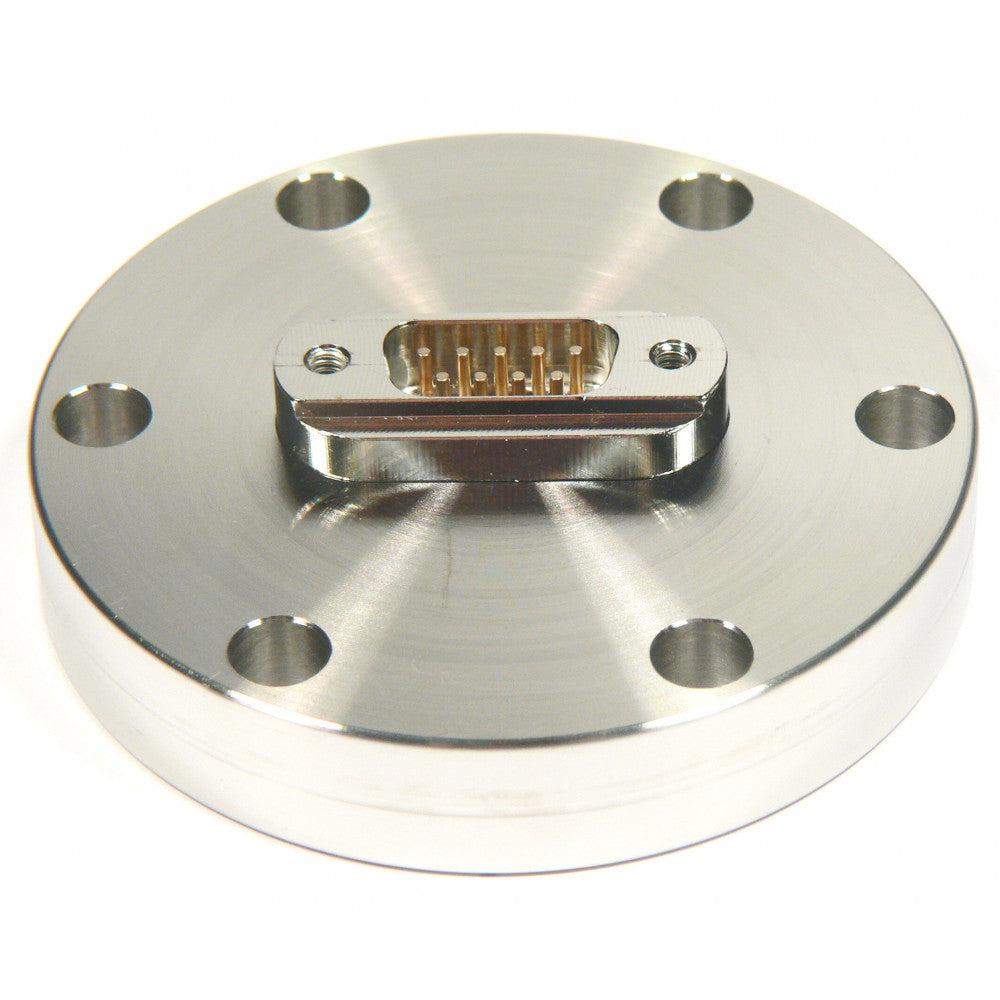

DN40CF FLANGE, SUB-D 9-WAY NON-MAGNETIC FEEDTHROUGH, UHV

DN40CF FLANGE, SUB-D 9-WAY NON-MAGNETIC FEEDTHROUGH, UHV

Allectra SKU: 210-D09-C40-NM
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• 316LN STAINLESS STEEL FLANGE • NON-MAGNETIC FEEDTHROUGH HOUSING • TUNGSTEN – COPPER PINS

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material W Cu
  • Vacuum Seal Glass ceramic
  • Body Material Special Stainless Steel
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Magnetic Permeability <1.008
  • Temperature Range -200°C to 230°C
  • Number of Pins 9
  • Conductor Diameter 1mm
