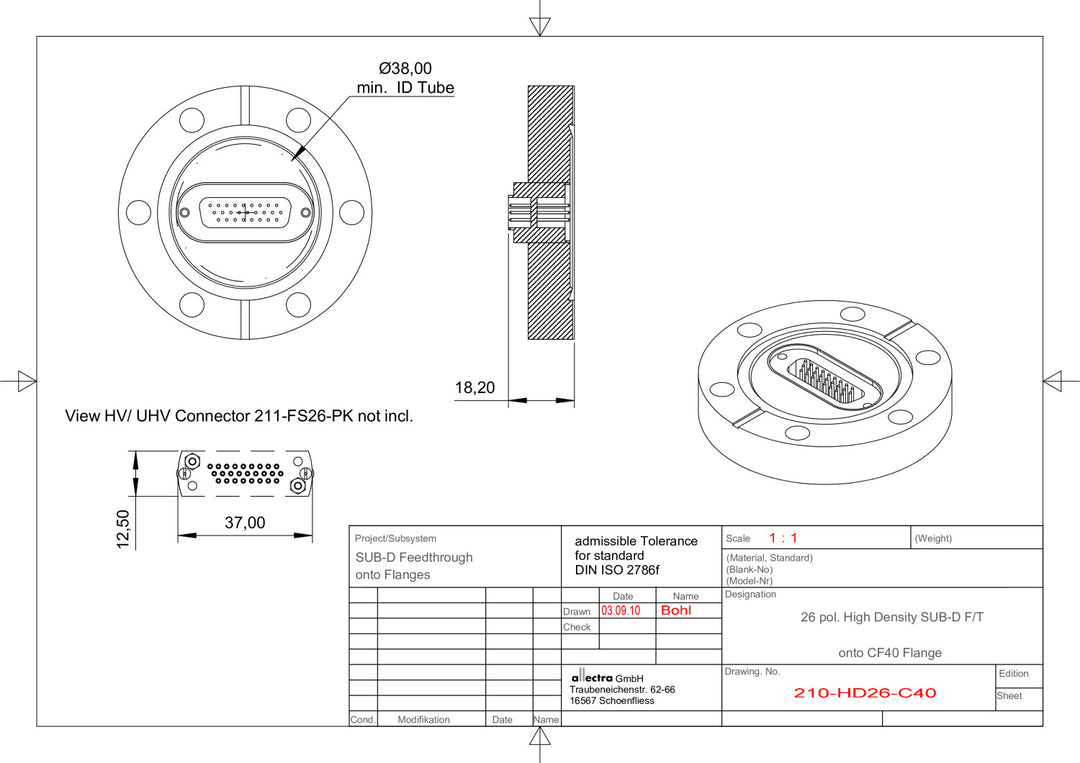

DN40CF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH

Allectra SKU: 210-HD26-C40
DN40CF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH

DN40CF FLANGE, SUB-D 26-WAY HIGH DENSITY FEEDTHROUGH

Allectra SKU: 210-HD26-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 3A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 26
  • Conductor Diameter 0.7mm
