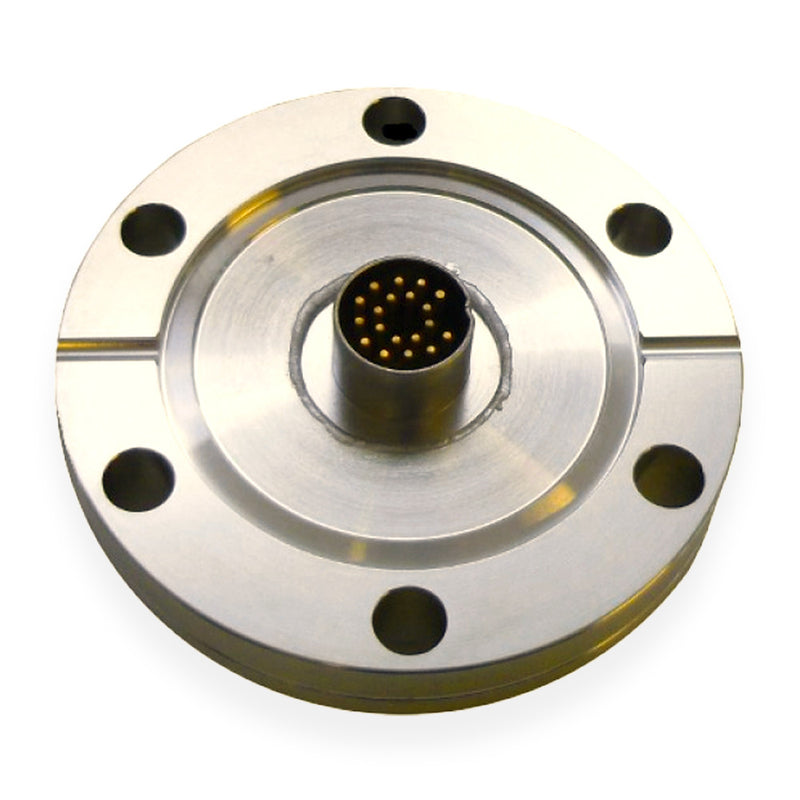

Allectra offer Circular Miniature Feedthroughs in 6,12, and 19 pin versions allowing a high density of contacts in a small space. A wide range of flange types and sizes are available.
Specifications
- Vacuum Leak Rate UHV <5x10-10 mbar l/s
- Size or DN DN40CF (2 ¾” OD flange)
- Compliance Circular Miniature (CM)
- Conductor Material NiFe
- Vacuum Seal Glass ceramic
- Body Material Stainless Steel
- Voltage Rating 500V DC pin to pin or pin to ground
- Max Current 3Amp
- Temperature Range -200°C to 220°C
- Number of Pins 19
