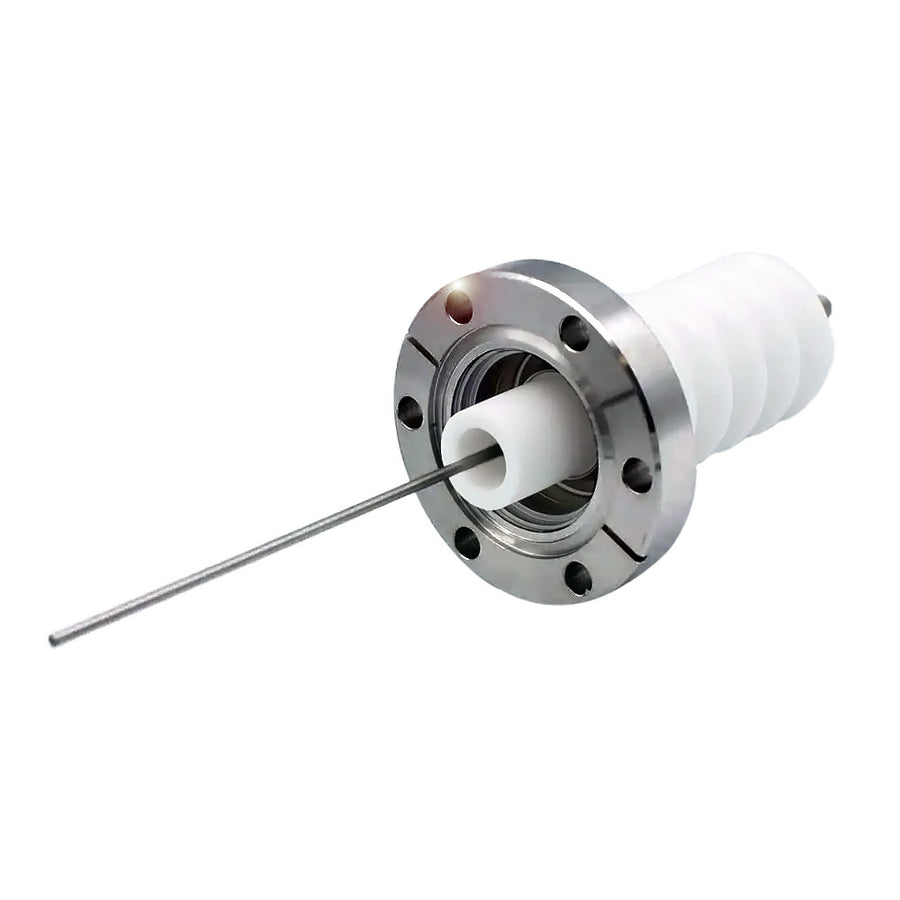

DN40CF FEEDTHROUGH, STAINLESS STEEL CONDUCTOR, 30KV, 3A

<img class="lazyloaded" src="//nanovactech.com/cdn/shop/products/DN40CF_FEEDTHROUGH_STAINLESS_STEEL_CONDUCTOR_30KV_3A_800x.jpg?v=1718341575" alt="DN40CF FEEDTHROUGH, STAINLESS STEEL CONDUCTOR, 30KV, 3A">

Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN DN40CF (2 ¾” OD flange)
Compliance High Voltage Feedthrough
Conductor Material Stainless steel
Vacuum Seal ceramic
Body Material 304 Stainless steel
Voltage Rating 30 kV DC
Max Current 3 Amps
Temperature Range -100°C to 450°C
