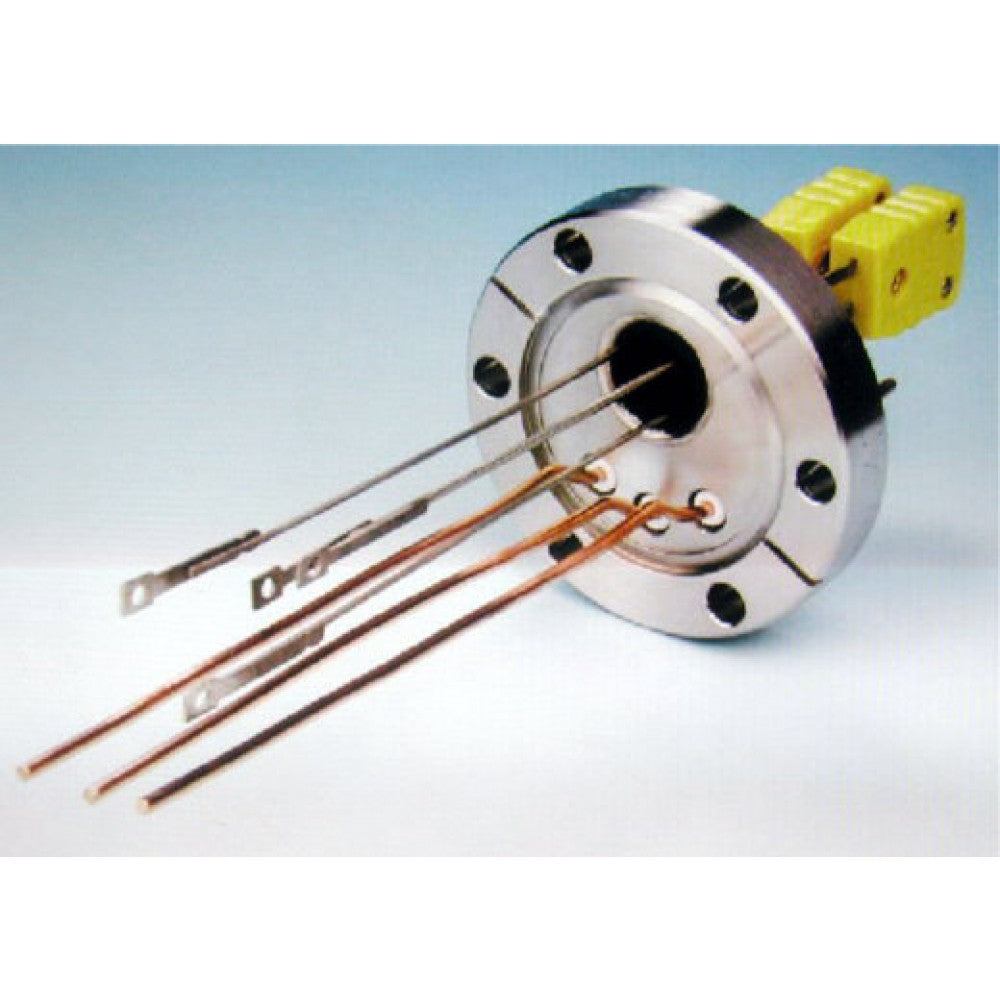

DN40CF COMBINATION FEEDTHROUGH, 3x Cu CONDUCTORS 30A, 2x T/C TYPE K, AIR SIDE CONNECTORS

Allectra SKU: 263-TCK-2-CU30-3-C40
DN40CF COMBINATION FEEDTHROUGH, 3x Cu CONDUCTORS 30A, 2x T/C TYPE K, AIR SIDE CONNECTORS

DN40CF COMBINATION FEEDTHROUGH, 3x Cu CONDUCTORS 30A, 2x T/C TYPE K, AIR SIDE CONNECTORS

Allectra SKU: 263-TCK-2-CU30-3-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance Thermocouple type K
  • Pin Gender male
  • Conductor Material Power pins Cu
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 5kV
  • Max Current 30A (3 power pins)
  • Temperature Range -100°C to 450°C (Air side Connector -65oC to 165oC)
  • Number of Pins 7
  • Conductor Diameter 2.3mm
  • Num in Pack 1
