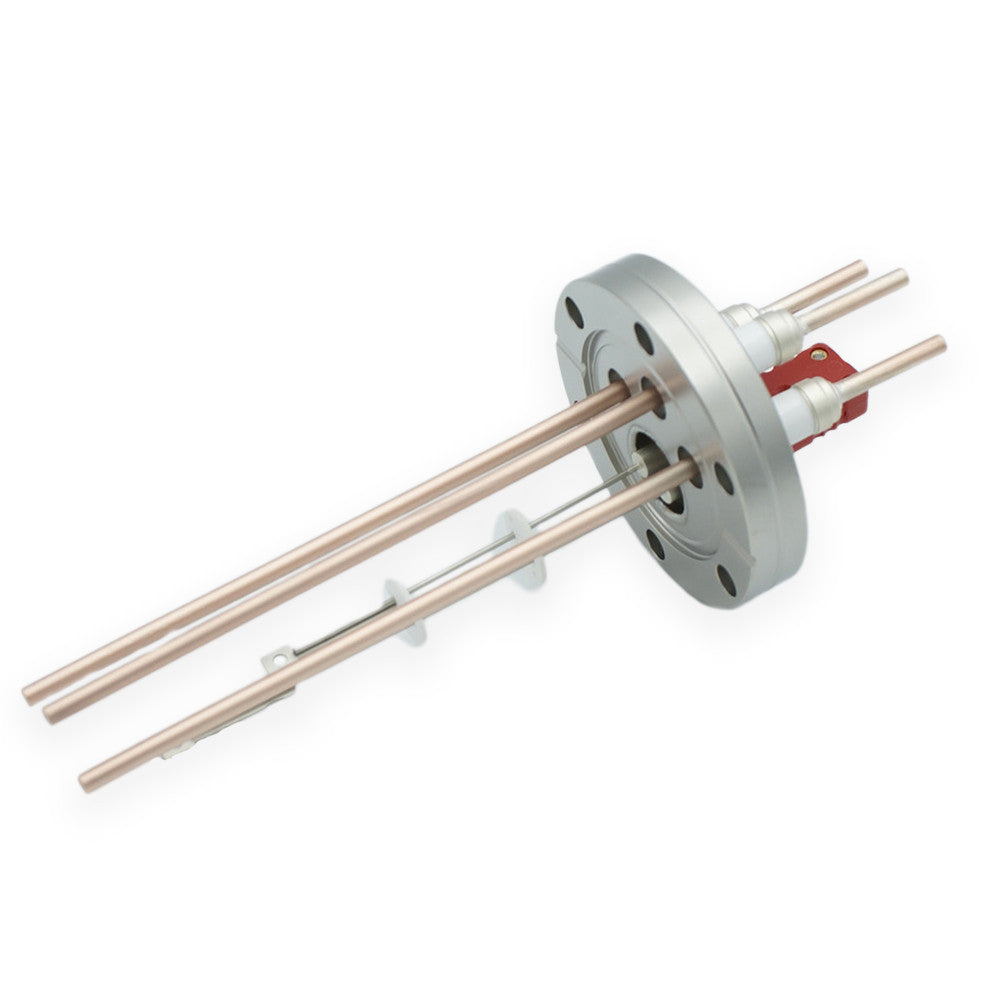

DN40CF COMBINATION FEEDTHROUGH, 3 POWER PINS, 5KV, 60A, 1 T/C PAIR TYPE C, AIR & VAC SIDE CONNECTORS

Allectra SKU: 263-TCC-1-CU60-3-C40
DN40CF COMBINATION FEEDTHROUGH, 3 POWER PINS, 5KV, 60A, 1 T/C PAIR TYPE C, AIR & VAC SIDE CONNECTORS

DN40CF COMBINATION FEEDTHROUGH, 3 POWER PINS, 5KV, 60A, 1 T/C PAIR TYPE C, AIR & VAC SIDE CONNECTORS

Allectra SKU: 263-TCC-1-CU60-3-C40
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Combination Feedthrough – Designed where both power leads & temperature measurement is required. • 1 Pair C type thermocouple connection • 3 Power pins - 5000 Volts, 60 Amps • Miniature thermocouple connector included (airside) • Screw and nut connector included (vac side)

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Conductor Material Copper (Cu) 3.96mm
  • Body Material Stainless Steel 304
  • Voltage Rating 5KV
  • Max Current 60A
  • Temperature Range -100°C to 450°C (Air side Connector -65°C to 165°)
  • Number of Pins 3
  • Number Of Pairs 1
