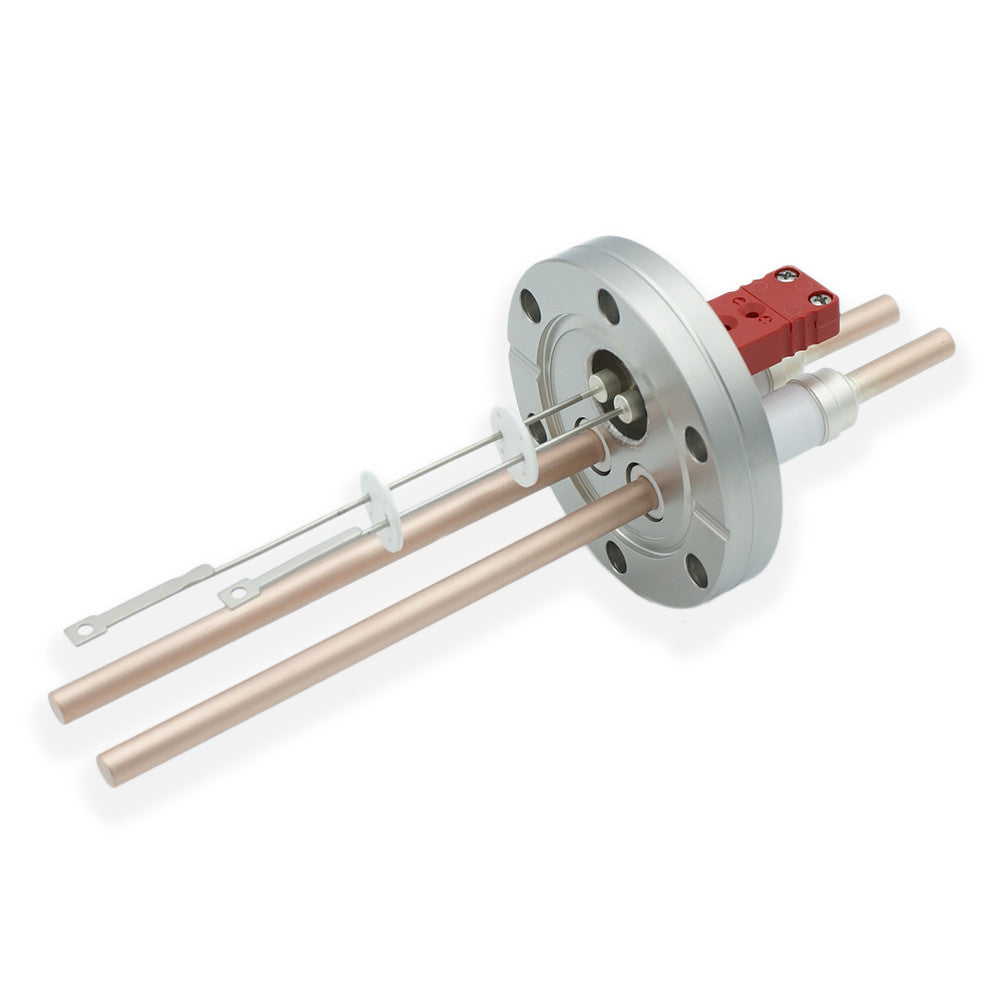

• Combination Feedthrough – Designed where both power leads & temperature measurement is required. • 1 Pair C type thermocouple connection • 2 Power pins - 5000 Volts, 150 Amps • Miniature thermocouple connector included (airside) • Screw and nut connector included (vac side)
Specifications
- Vacuum Leak Rate HV SUB-D <1x10-8mbar l/s
- Size or DN DN40CF (2 ¾” OD flange)
- Conductor Material Copper
- Body Material Stainless Steel 304
- Voltage Rating 5KV
- Max Current 150 Amps
- Temperature Range -100°C to 450°C (Air side Connector -65°C to 165°
- Number of Pins 2
- Number Of Pairs 1
