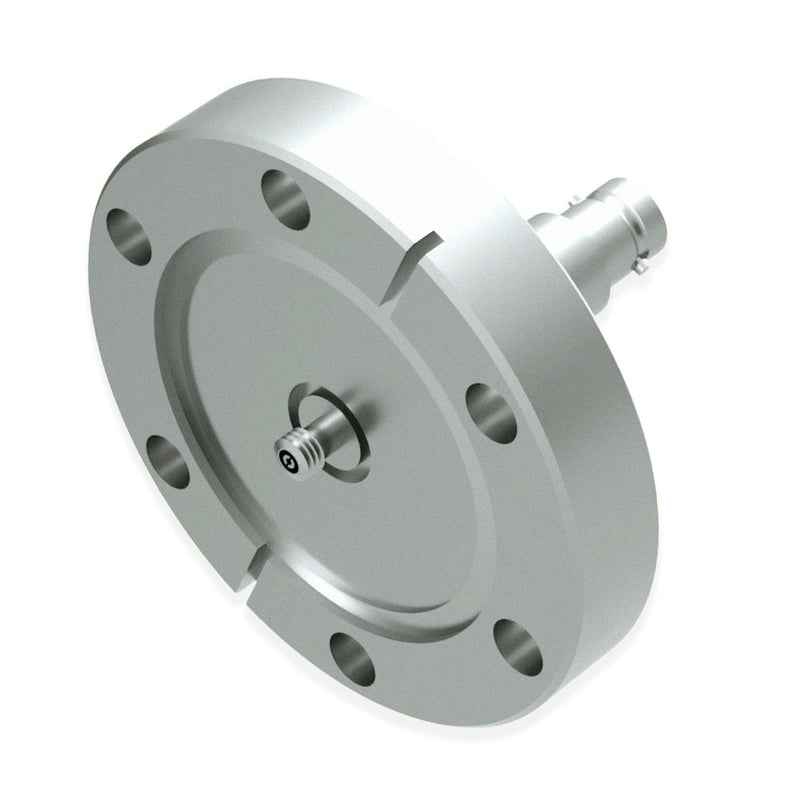

DN40CF COAXIAL BNC-MICRODOT CRYSTAL SENSOR F/T, 1 PIN, GROUNDED SHIELD, AIR-SIDE BNC CONNECTOR INC.

• Grounded Shield • Voltage: 500 Volts DC • Current: 2 Amps • Temperature Rating: -200 TO 450°C (Feedthrough), 65 TO 165°C (Airside connector,) • Impedance: Non- Constant These feedthroughs, sometime referred to as ‘between series’ feedthroughs, are commonly used in conjunction with crystal sensors to monitor deposition thicknesses of in-vacuum coating applications

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN40CF (2 ¾” OD flange)
• Voltage Rating 500 Volts DC
• Max Current 2 Amps
• Temperature Range 200 TO 450°C (Feedthrough), 65 TO 165°C (Airside connector)
• Number of Pins 1
