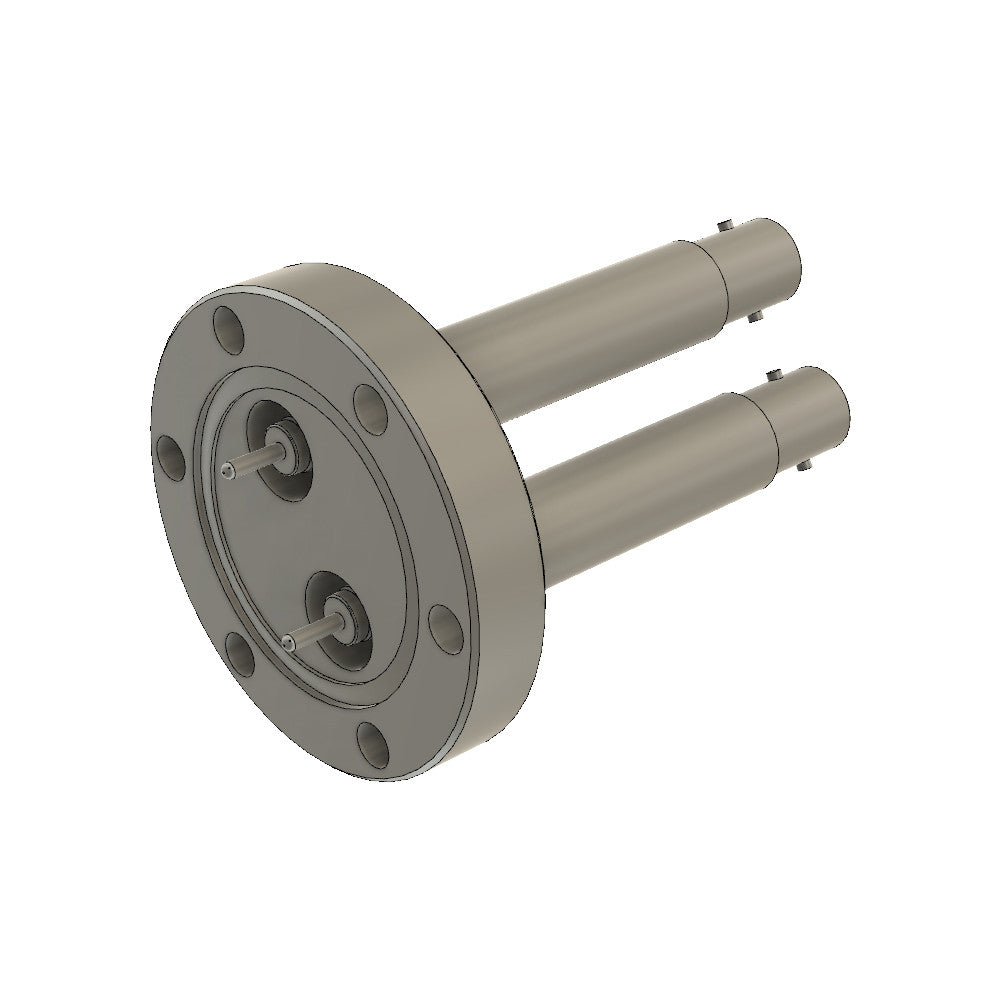

DN40CF 2x SHV 20KV COAXIAL FEEDTHROUGH, RECESSED TYPE, AIR SIDE CONNECTOR

DN40CF 2x SHV 20KV COAXIAL FEEDTHROUGH, RECESSED TYPE, AIR SIDE CONNECTOR

Allectra SKU: 250-SHV20-C40-2
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN40CF (2 ¾” OD flange)
  • Compliance SHV 20kV
  • Conductor Material Nickel
  • Body Material Stainless Steel/Nickel
  • Voltage Rating 20 kV DC
  • Max Current 15 amps
  • Temperature Range -200°C to 450°C (Air side Connector -65oC to 165oC)
  • Number of Pins 2
