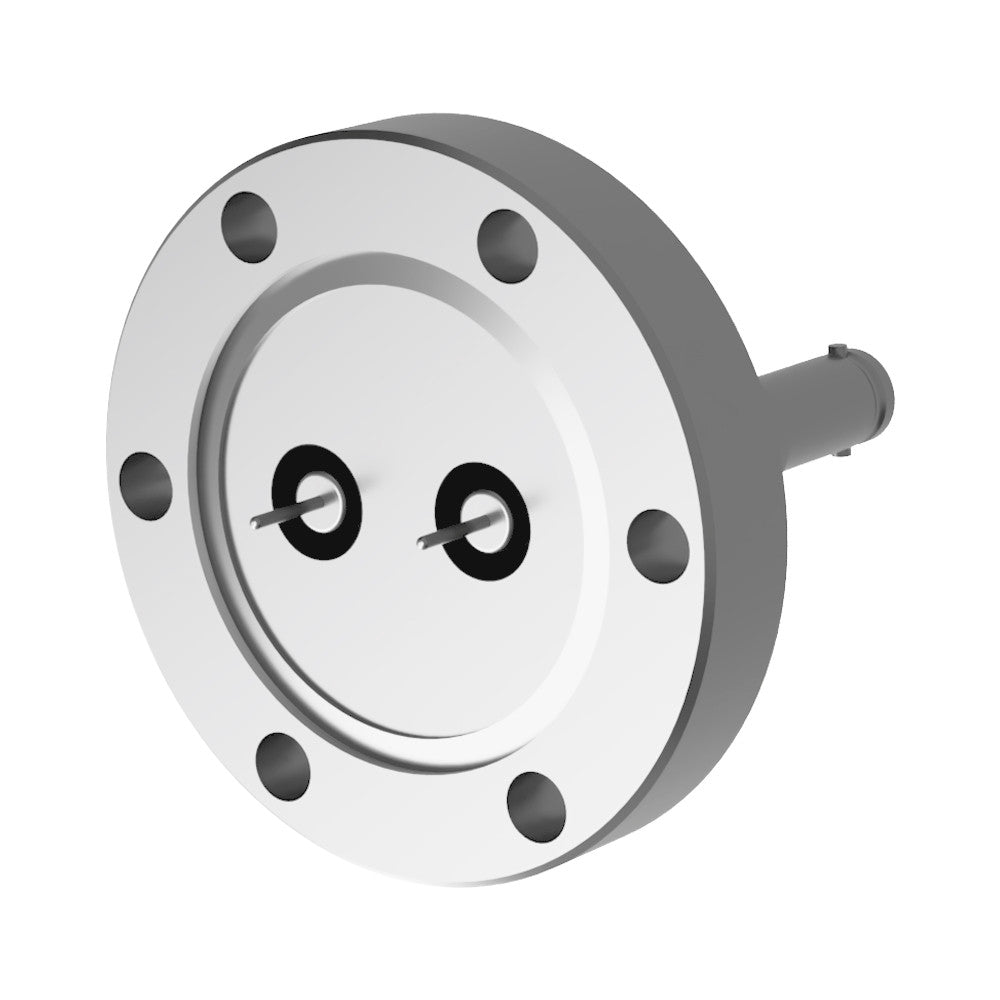

DN40CF 2x SHV 10KV COAXIAL FEEDTHROUGHS, RECESSED TYPE, AIR SIDE CONNECTORS

Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN DN40CF (2 ¾” OD flange)
Compliance SHV 10kV
Conductor Material Nickel
Body Material Stainless Steel/Nickel
Voltage Rating 10 kV DC
Max Current 5 Amps
Temperature Range -200°C to 450°C (Air side Connector -65oC to 165oC)
Number of Pins 2
