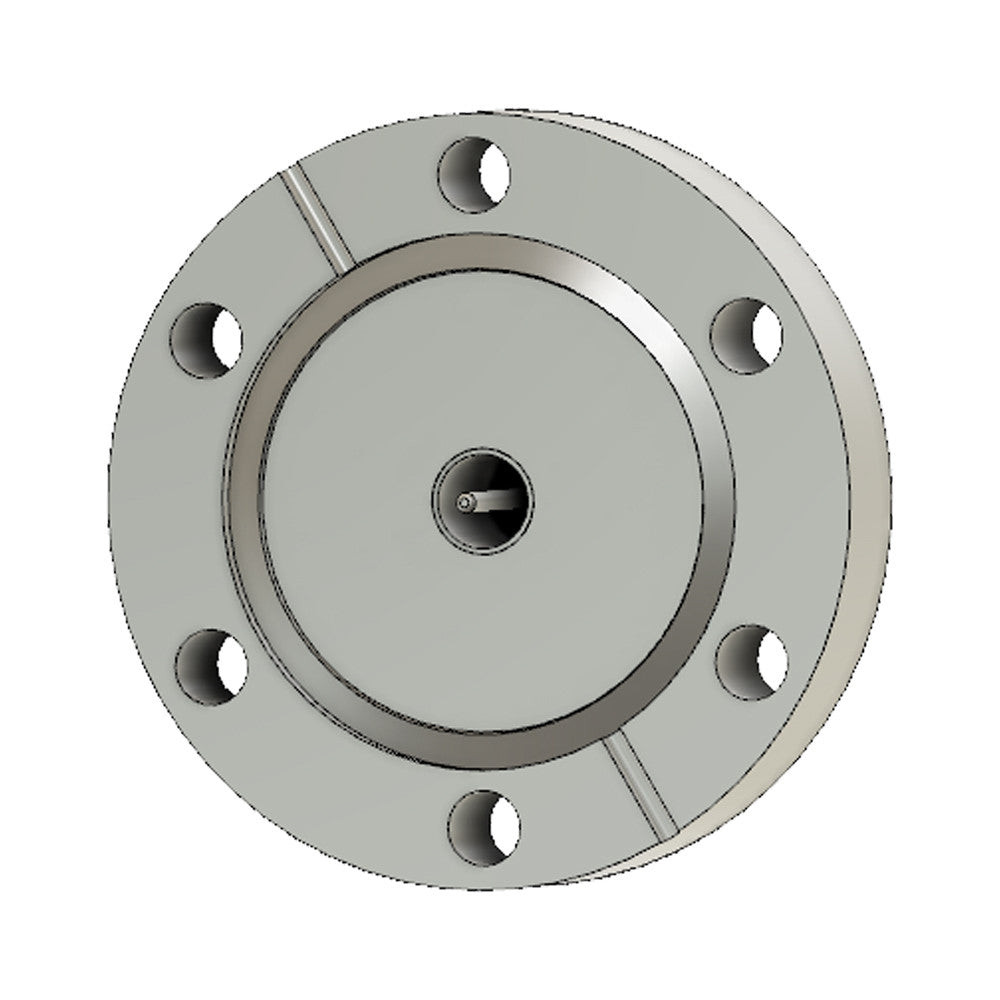

DN40CF 1 X SMA FEEDTHROUGH, 50 OHM, SINGLE SIDED, GROUNDED SHIELD, 1000V DC, 3A MAX, 6.5 GHz

• UHV • Pin Ø: 2.4 mm • Test Voltage: 6000V DC • Test Resistivity: >1GΩ (Pins to Ground) • Frequency Range: DC to 100 MHz • Weld Ø: 12.6mm • Air Side Cables: NOT INCLUDED

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN40CF (2 ¾” OD flange)
• Body Material Stainless Steel 304(L)
• Voltage Rating 6 kV DC
• Max Current 5A per pin
• Temperature Range -200°C to 300°C
• Impedance 50 ohms
• Number of Pins 1
