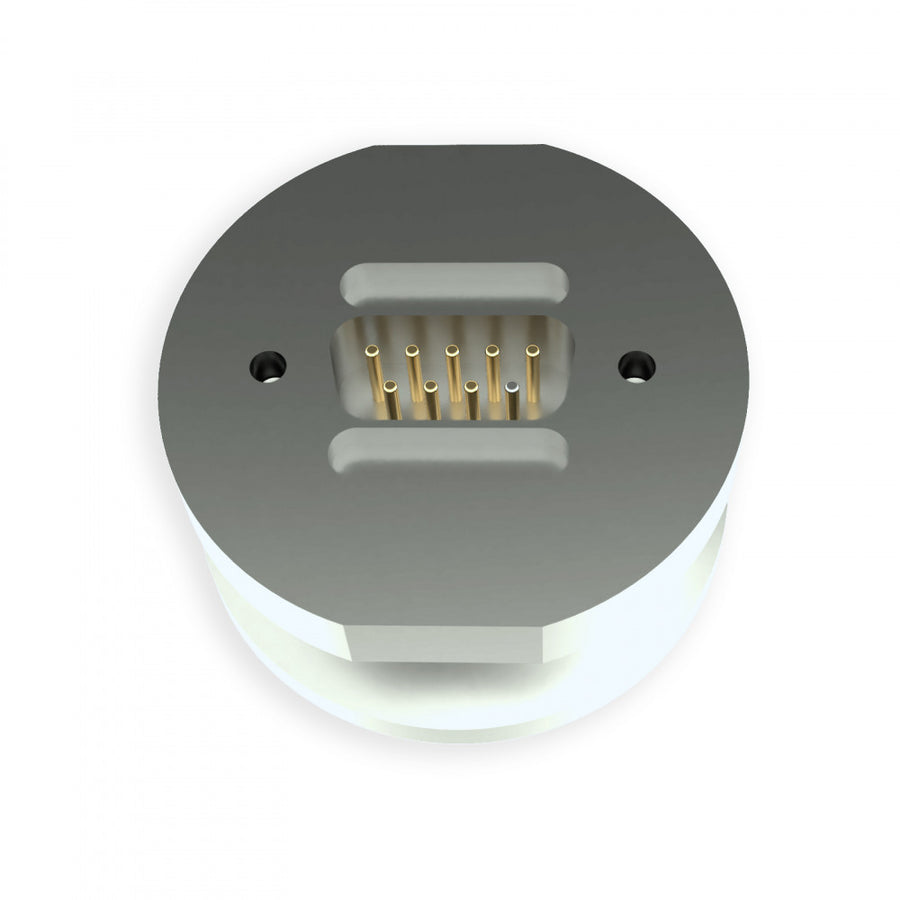

DN25KF FLANGE, SUB-D 9-WAY FEEDTHROUGH

Allectra SKU: 210-D09-K25
DN25KF FLANGE, SUB-D 9-WAY FEEDTHROUGH

DN25KF FLANGE, SUB-D 9-WAY FEEDTHROUGH

Allectra SKU: 210-D09-K25
Your inquiry was submitted successfully. You can expect to hear from us shortly.

For High Vacuum connection use #211-FS09-HV-SX For Ultra High Vacuum connection use #211-FS09-PK-SX

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN25KF flange
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 9
  • Conductor Diameter 1mm
