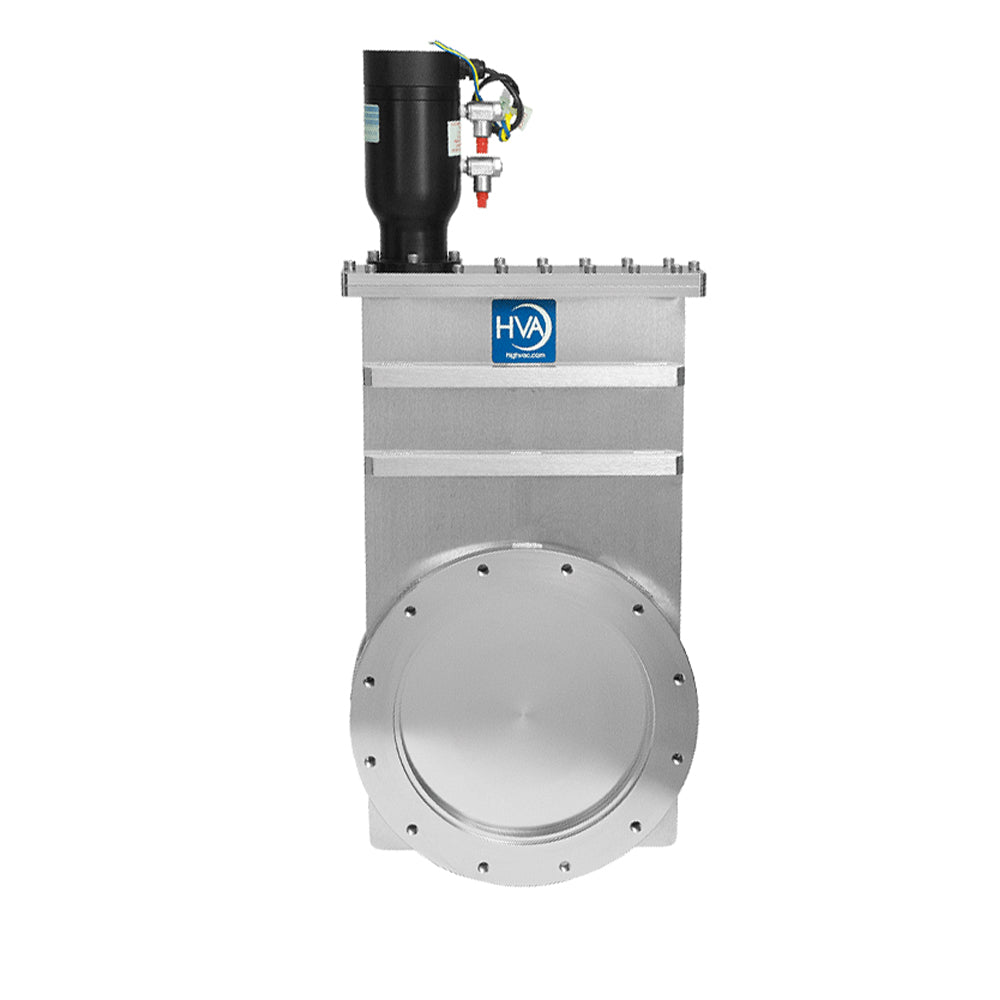

DN200ISO-F HVA High Vacuum Gate Valve , pneumatic operation

DN200ISO-F HVA High Vacuum Gate Valve , pneumatic operation

Allectra SKU: 515-GV-ISO200-P
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

The HVA pneumatic ISO-F flange series of standard cycle gate valves are designed for high vacuum applications. These valves provide valving for cryopumps, turbo pumps, ion pumps and other applications requiring clean, low outgassing valves Supplied with 24V DC Actuator Normally Closed

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Vacuum Seal Viton O Ring, Viton Bonnet
  • Body Material Stainless Steel
  • Temperature Range Open 200oC, Closed 150oC
  • Inside Diameter 203.2
  • Thickness 67.4
  • size DN200ISO-K flange
