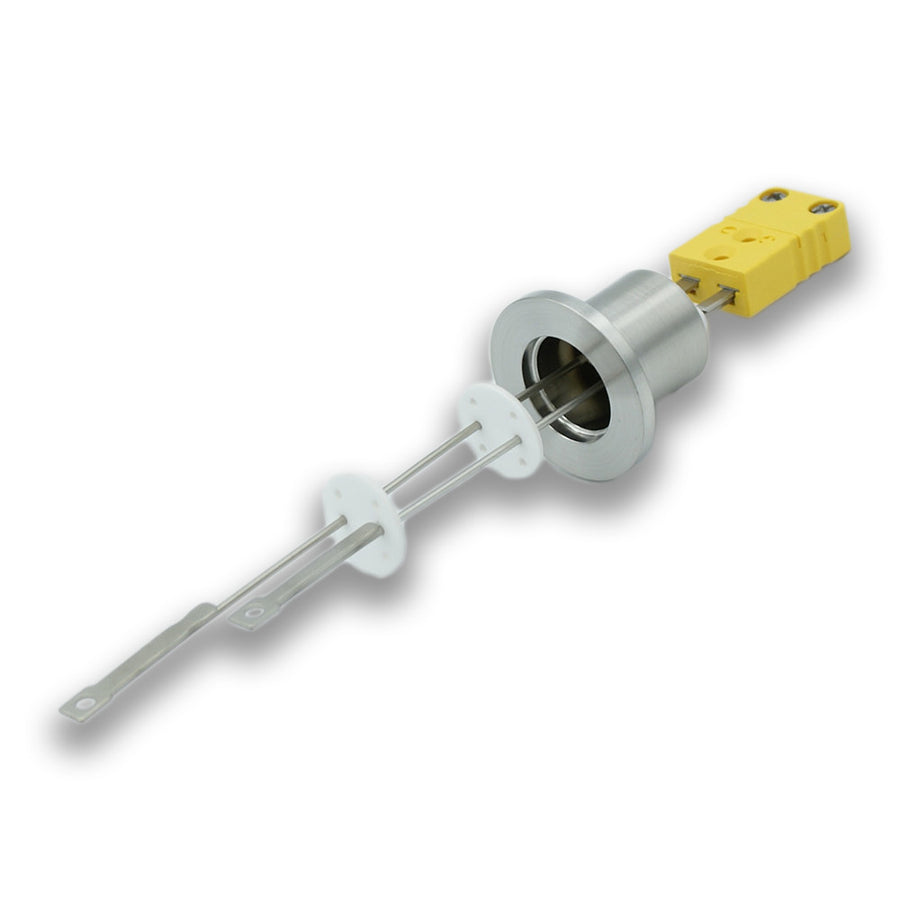

DN16KF THERMOCOUPLE FEEDTHROUGH TYPE K, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

DN16KF THERMOCOUPLE FEEDTHROUGH TYPE K, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCK-1-K16
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Chromel) is shorter than the (-) pole (Alumel) • Miniature thermocouple connectors are included for the air side. • Type K thermocouple temperature range: -200oC to 1200oC

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN16KF flange
  • Compliance Type K thermocouple
  • Conductor Material Chromel , Alumel
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -100°C to 450°C
  • Number of Pins 2
