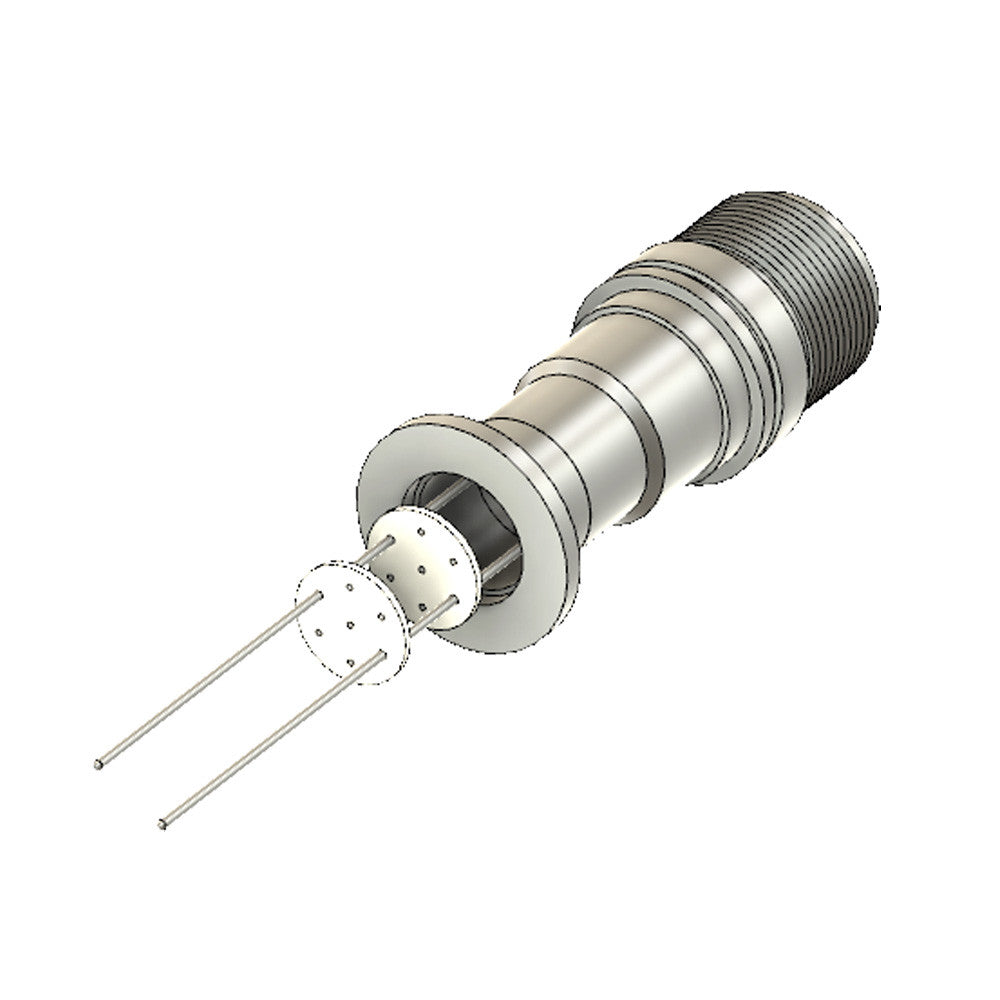

DN16KF MS FEEDTHROUGH, 2 x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE CONNECTOR INCLUDED

Allectra SKU: 267-075HV12K-2-K16
DN16KF MS FEEDTHROUGH, 2 x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE CONNECTOR INCLUDED

DN16KF MS FEEDTHROUGH, 2 x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE CONNECTOR INCLUDED

Allectra SKU: 267-075HV12K-2-K16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• VOLTAGE: 12,000 VOLTS DC • CURRENT: 7.5 AMPS PER PIN • TEMPERATURE RATING: -100 TO 450°C WITHOUT CONNECTOR

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN16KF
  • Conductor Material Molybdenum
  • Body Material Stainless Steel 304(L)
  • Voltage Rating 12 kV DC
  • Max Current 7.5 Amps Per Pin
  • Temperature Range -100°C to 450°C (without connector)
