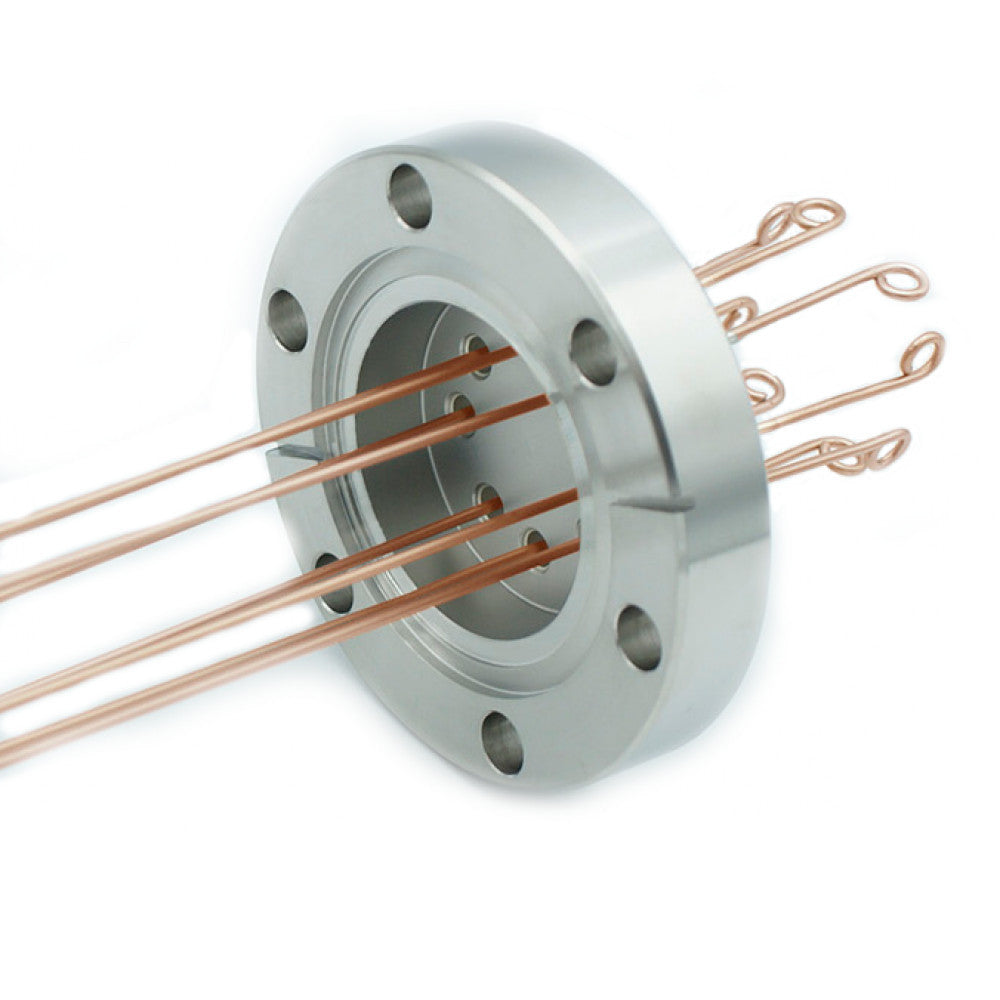

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE R, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS INC.

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE R, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS INC.

Allectra SKU: 262-TCR-1-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• The (+) pole is shorter than the (-) pole • Type R thermocouple temperature range: 0oC to 1450oC • Feedthrough bakeable to 450 oC

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance Type R thermocouple
  • Conductor Material +PT13% RH - PT
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -100°C to 450°C
  • Number of Pins 2
