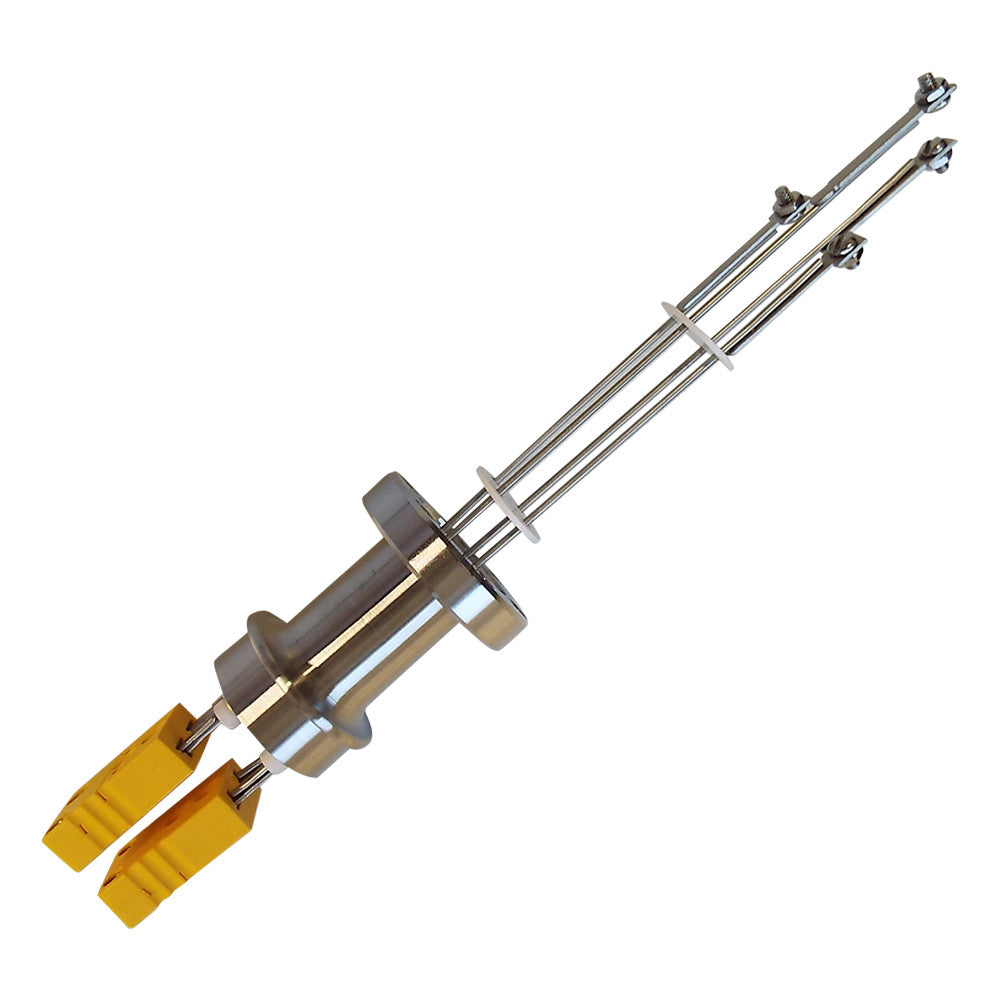

Name: DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE K, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS
Brand: Allectra
SKU: 262-TCK-2-C16
Availability: InStock

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE K, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS

Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Chromel) is shorter than the (-) pole (Alumel) • Miniature thermocouple connectors are included for the air side. • Type K thermocouple temperature range: -200oC to 1200oC

Specifications

Vacuum Leak Rate UHV <5x10-10 mbar l/s
Size or DN DN16CF (1.33” OD flange)
Compliance Type K thermocouple
Conductor Material .
Body Material Stainless Steel/Ceramic
Temperature Range -100°C to 450°C (Air side Connector -65°C to 160°C)
Number of Pins 4
