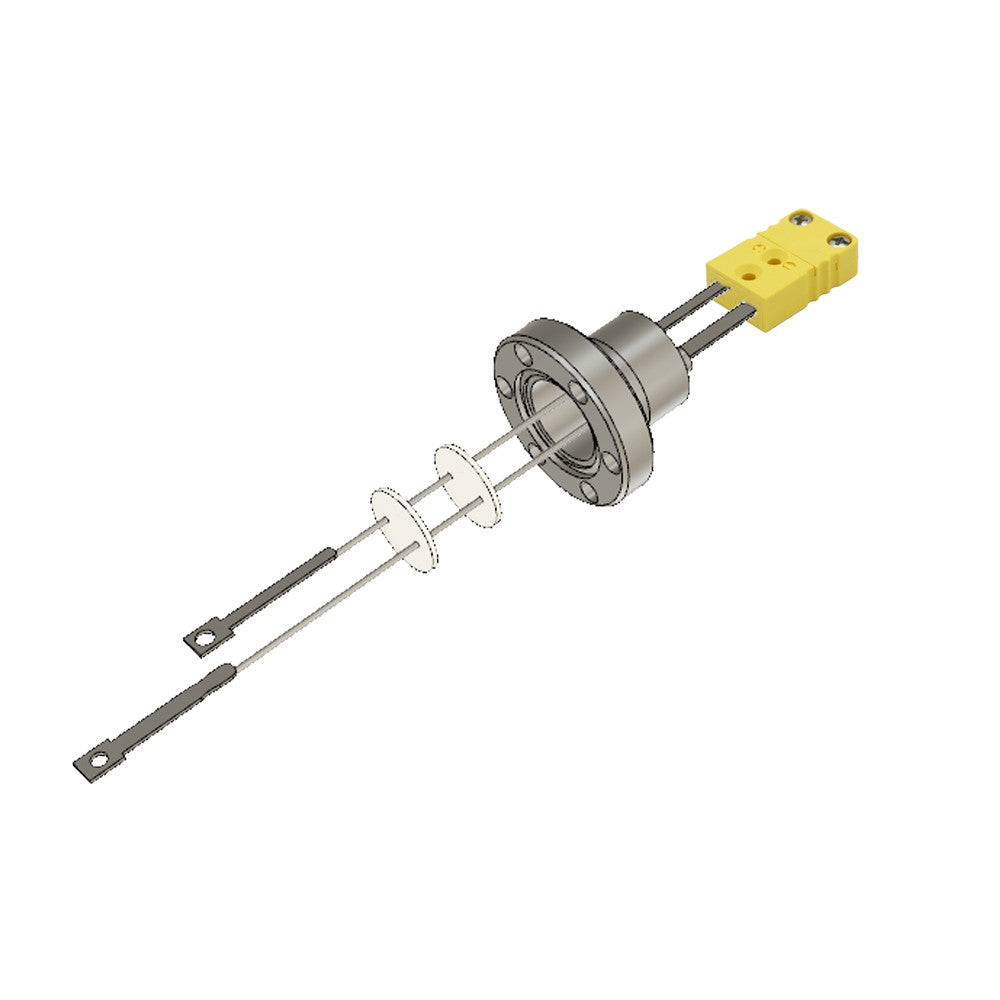

DN16CF THERMOCOUPLE FEEDTHROUGH TYPE K, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS INCLUDED

• Vacuum side pins terminate with a screw connector (included) • The (+) pole (Chromel) is shorter than the (-) pole (Alumel) • Miniature thermocouple connectors are included for the air side. • Type K thermocouple temperature range: -200oC to 1200oC

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN16CF flange
• Conductor Material Chromel , Alumel
• Body Material Stainless Steel/Ceramic
• Temperature Range -100°C to 450°C
