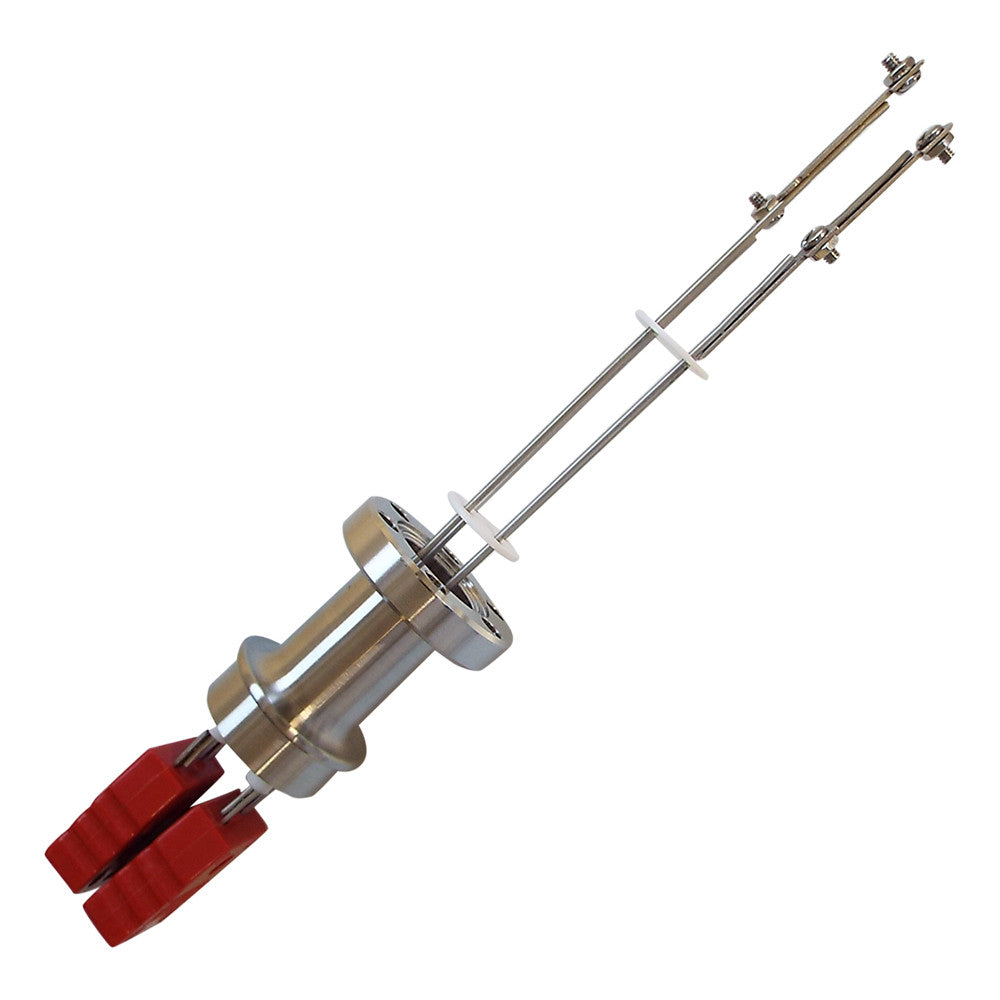

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 2 PAIRS, AIR & VACUUM-SIDE CONNECTORS
Allectra
SKU: 262-TCC-2-C16
• Vacuum side pins terminate with a screw connector (included) • The (+) pole is shorter than the (-) pole • Miniature thermocouple connectors are included for the air side. • Type C thermocouple temperature range: 0°C to 2320°C
Specifications
- Vacuum Leak Rate UHV <5x10-10 mbar l/s
- Size or DN DN16CF (1.33” OD flange)
- Compliance Type C thermocouple
- Conductor Material .
- Body Material Stainless Steel/Ceramic
- Temperature Range -200°C to 450°C
- Number of Pins 4
