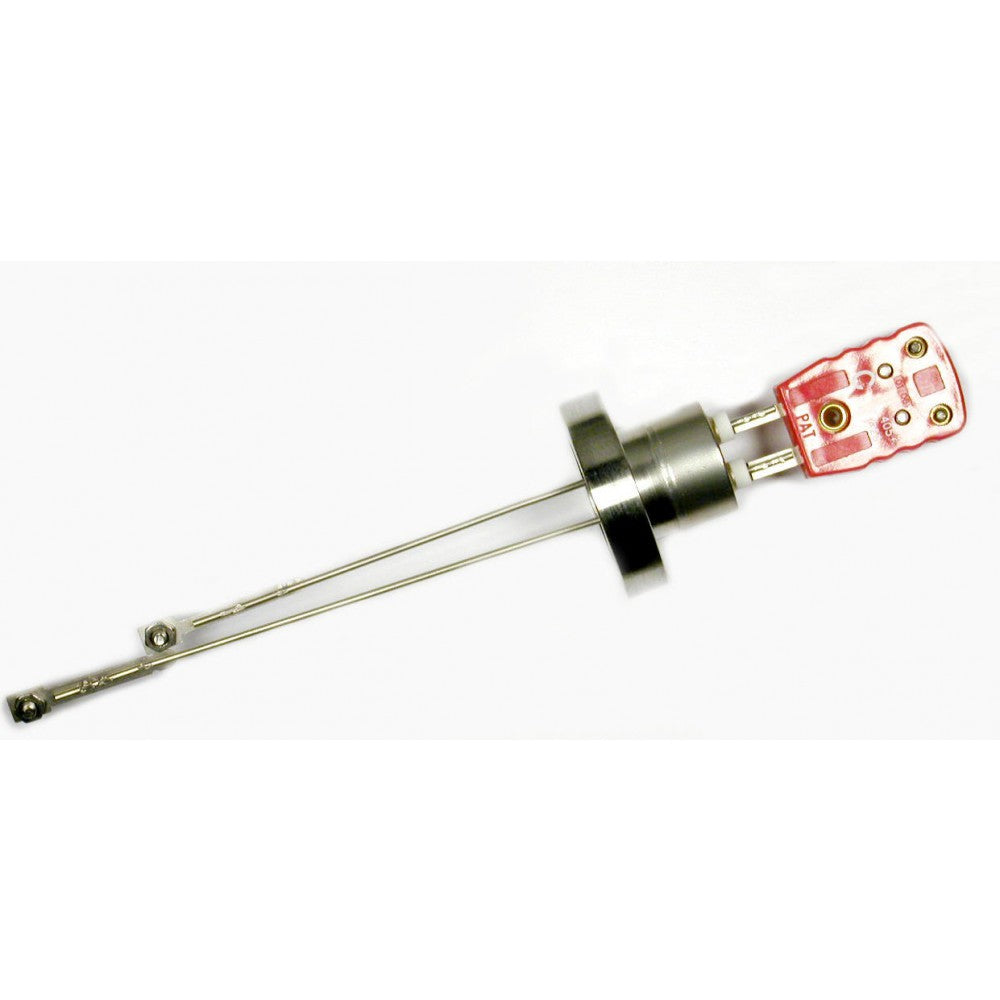

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCC-1-C16
DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

DN16CF THERMOCOUPLE FEEDTHROUGH, TYPE C, 1 PAIR, AIR & VACUUM-SIDE CONNECTORS

Allectra SKU: 262-TCC-1-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Vacuum side pins terminate with a screw connector (included) • The (+) pole is shorter than the (-) pole • Miniature thermocouple connectors are included for the air side. • Type C thermocouple temperature range: 0°C to 2320°C

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance Type C thermocouple
  • Conductor Material .
  • Body Material Stainless Steel/Ceramic
  • Temperature Range -100°C to 450°C
  • Number of Pins 2
