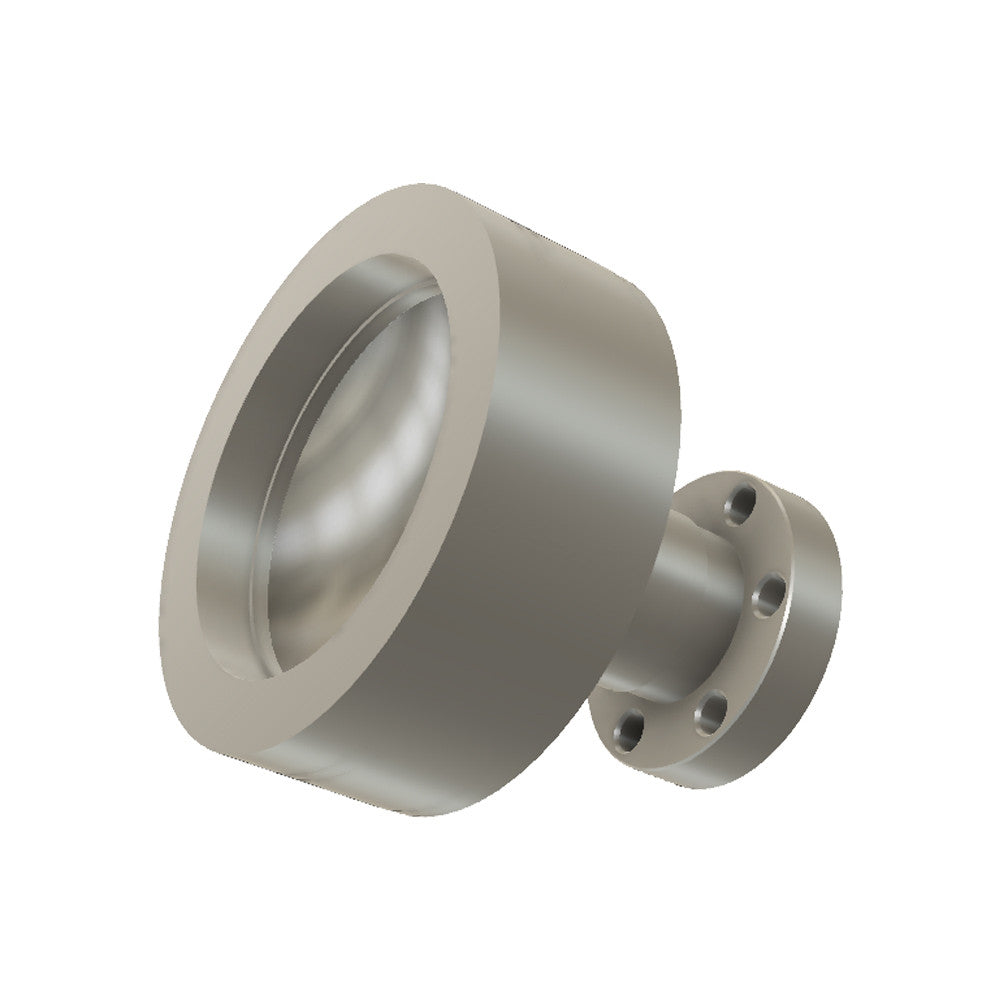

DN16CF Pressure Burst Disc, Low Pressure Type, Stainless Steel,

DN16CF Pressure Burst Disc, Low Pressure Type, Stainless Steel,

Allectra SKU: 461-PBD-C16-LP
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Bursting Pressure 0.6 to 0.8 bar over atmosphere • Allectra Pressure Burst Discs are designed to rupture and release gas in the event of potentially hazardous pressures greater than atmospheric pressure occurring in the Vacuum System

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Body Material 316 Stainless Steel
  • Temperature Range -200°C to +350°C
