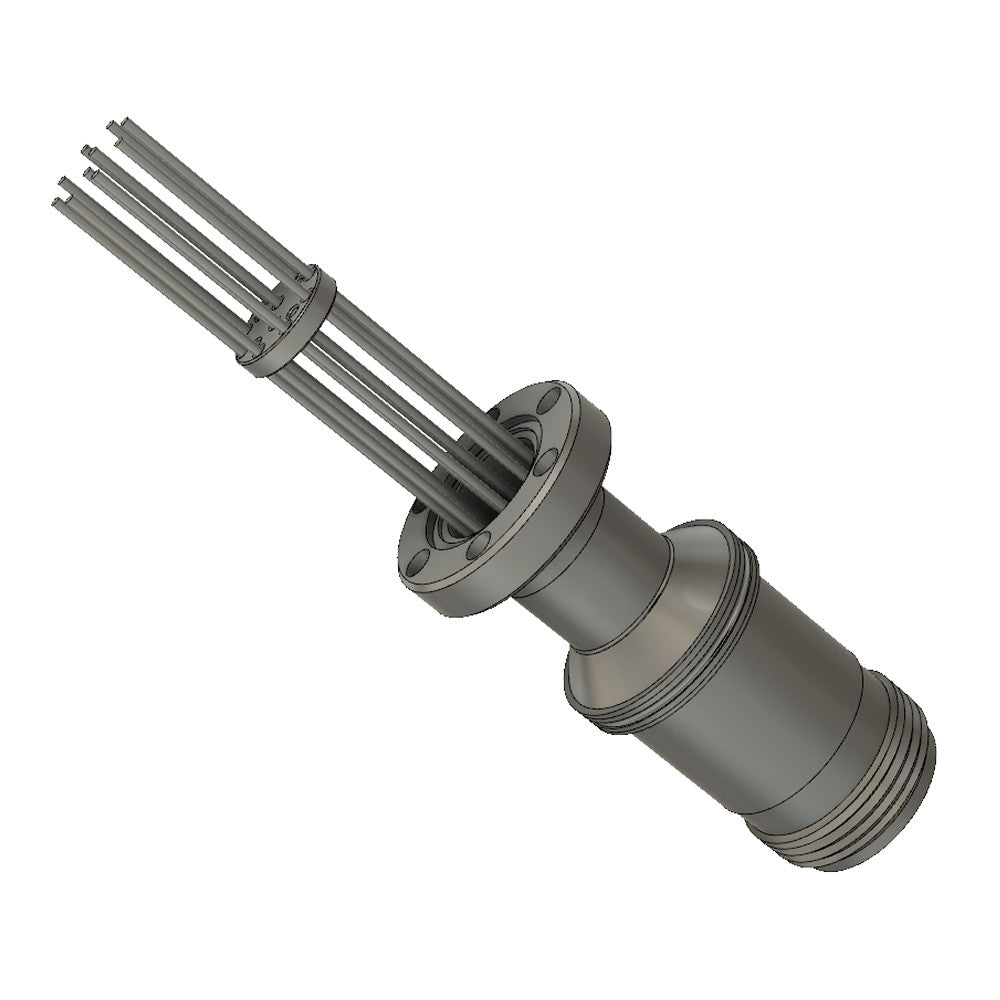

DN16CF MULTIPIN FEEDTHROUGH, 10 PINS, 700V, AIR SIDE MS CONNECTOR

DN16CF MULTIPIN FEEDTHROUGH, 10 PINS, 700V, AIR SIDE MS CONNECTOR

Allectra SKU: 221-10AL700-10-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance MS style plug
  • Conductor Material Alumel
  • Vacuum Seal Ceramic
  • Body Material Stainless Steel
  • Voltage Rating 700 V DC
  • Max Current 10Amps max. per pin
  • Temperature Range -100°C to 450°C (without socket)
  • Number of Pins 10
