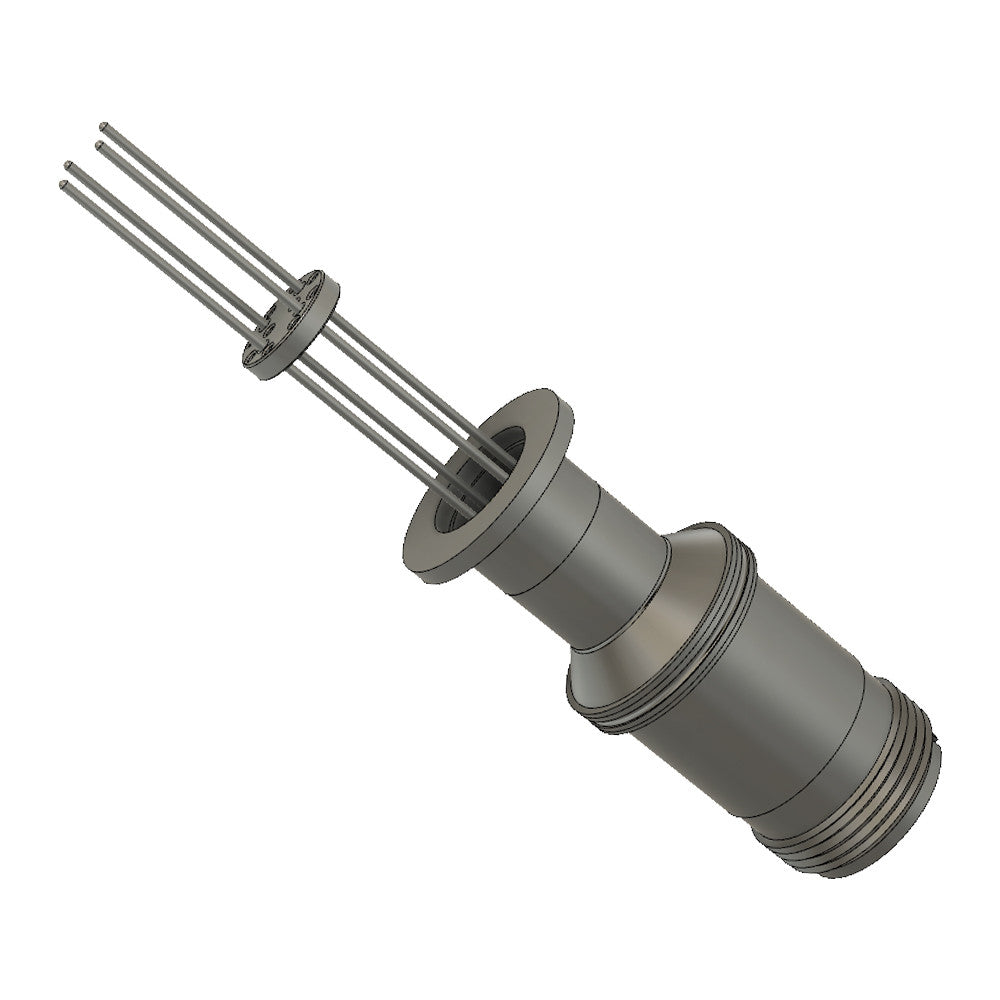

DN16CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 3 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

DN16CF MS STYLE THERMOCOUPLE FEEDTHROUGH, 3 PAIRS K THERMOCOUPLES, WITH AIR SIDE SOCKET

Allectra SKU: 263-TCK-MS-3-C16
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

MS socket max. temp 125oC

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance Thermocouple type K
  • Pin Gender male
  • Conductor Material Chromel/Alumel
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Temperature Range -100°C to 450°C (Air side Connector -65oC to 165oC)
  • Conductor Diameter 1.4mm
  • Num in Pack 1
