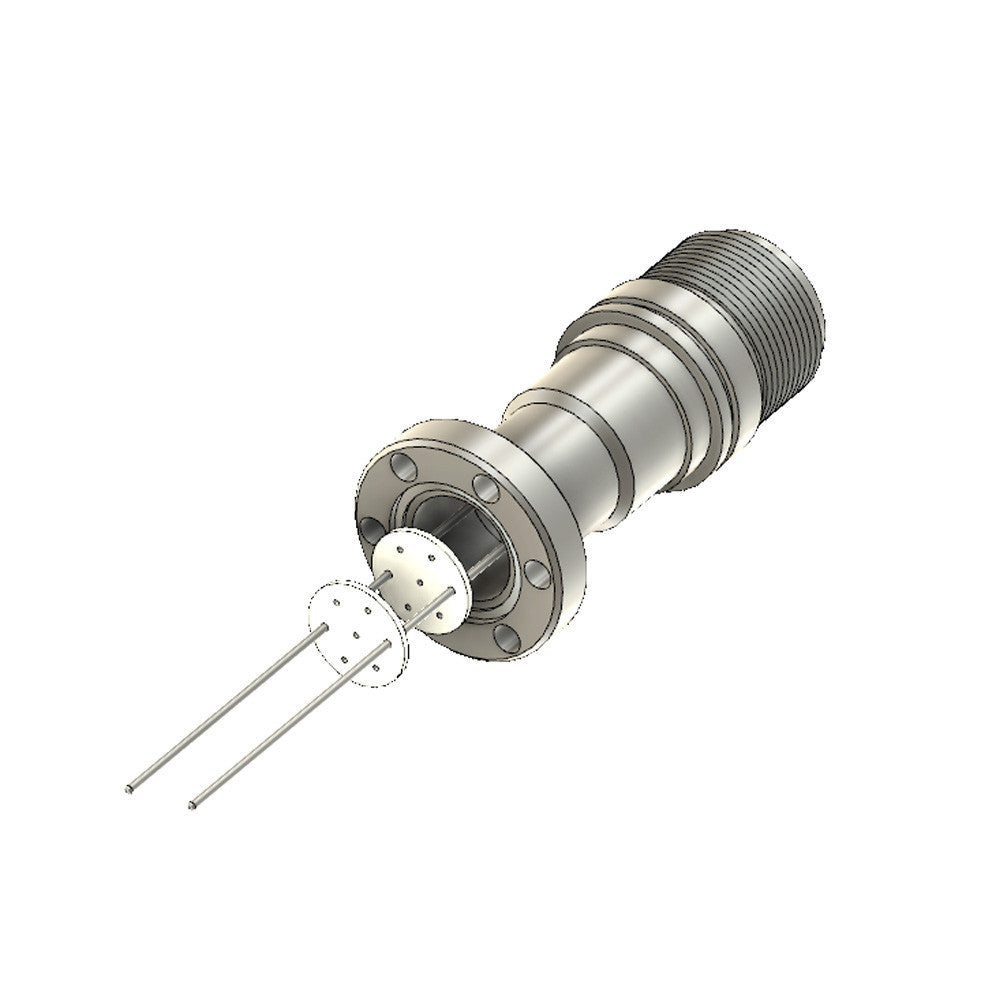

DN16CF MS FEEDTHROUGH, 2x MOLYBDENUM CONDUCTORS, 12KV, 7.5A, AIR SIDE CONNECTOR INCLUDED

• VOLTAGE: 12,000 VOLTS DC • CURRENT: 7.5 AMPS PER PIN • TEMPERATURE RATING: -100 TO 450°C WITHOUT CONNECTOR

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN16CF (1.33” OD flange)
• Compliance MS style plug
• Conductor Material MOLYBDENUM
• Vacuum Seal ceramic
• Body Material 304 Stainless steel
• Voltage Rating 12 kV DC
• Max Current 7.5 Amps
• Temperature Range -100°C to 450°C (without connector)
