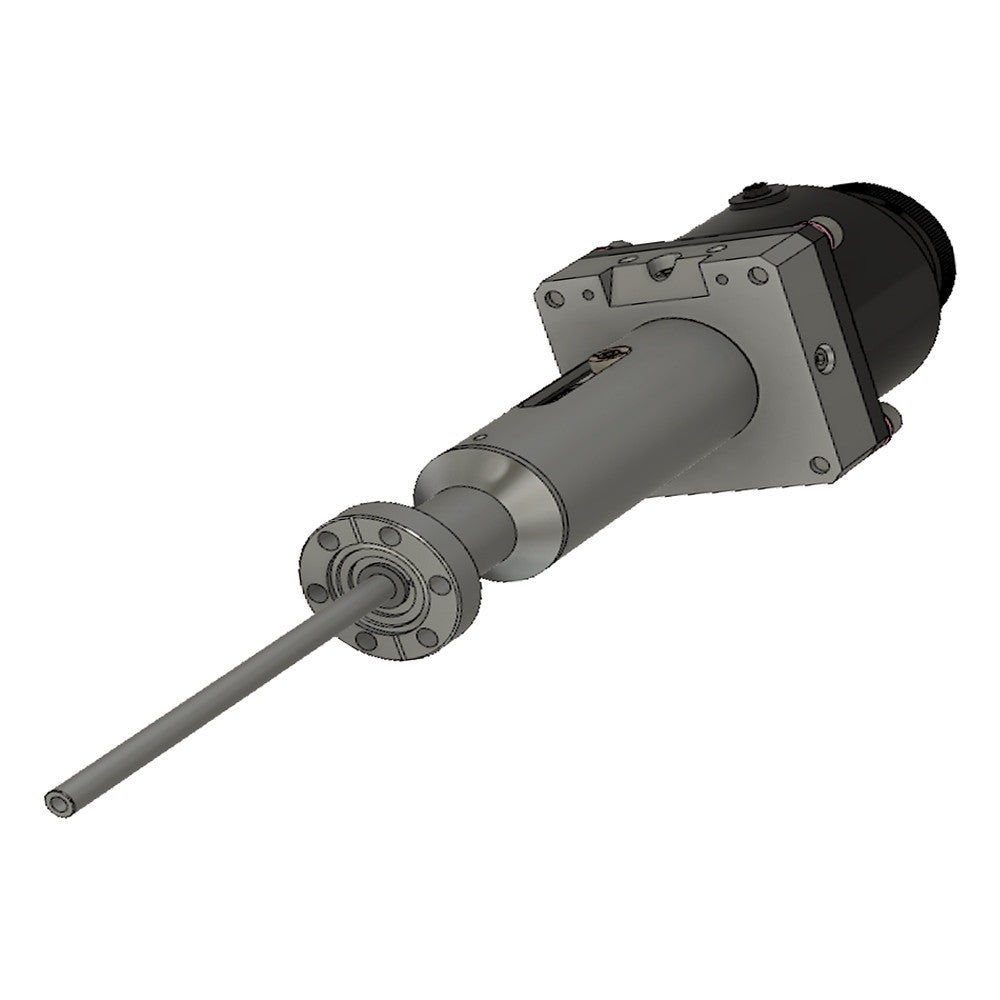

DN16CF LINEAR DRIVE WITH 50mm TRAVEL WITH STEPPER MOTOR. EDGE WELDED BELLOWS SEALED.

Allectra SKU: 612-CLD50-SM-C16
DN16CF LINEAR DRIVE WITH 50mm TRAVEL WITH STEPPER MOTOR. EDGE WELDED BELLOWS SEALED.

DN16CF LINEAR DRIVE WITH 50mm TRAVEL WITH STEPPER MOTOR. EDGE WELDED BELLOWS SEALED.

Allectra SKU: 612-CLD50-SM-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• UHV • Stainless Steel and Aluminium • Edge Welded Bellows • Current 2 A Per Phase (Bipolar Wiring) • Travel 5μm / 1 Full Step • Movement Range 50mm • Motor 2 Phase Stepper • Manual Knob Included

Specifications

  • Size or DN DN16CF (1.33” OD flange)
  • Body Material Stainless Steel
  • Temperature Range 220°C ( stepper motor removed)
  • Shaft Diameter 6mm
  • Travel 50mm
