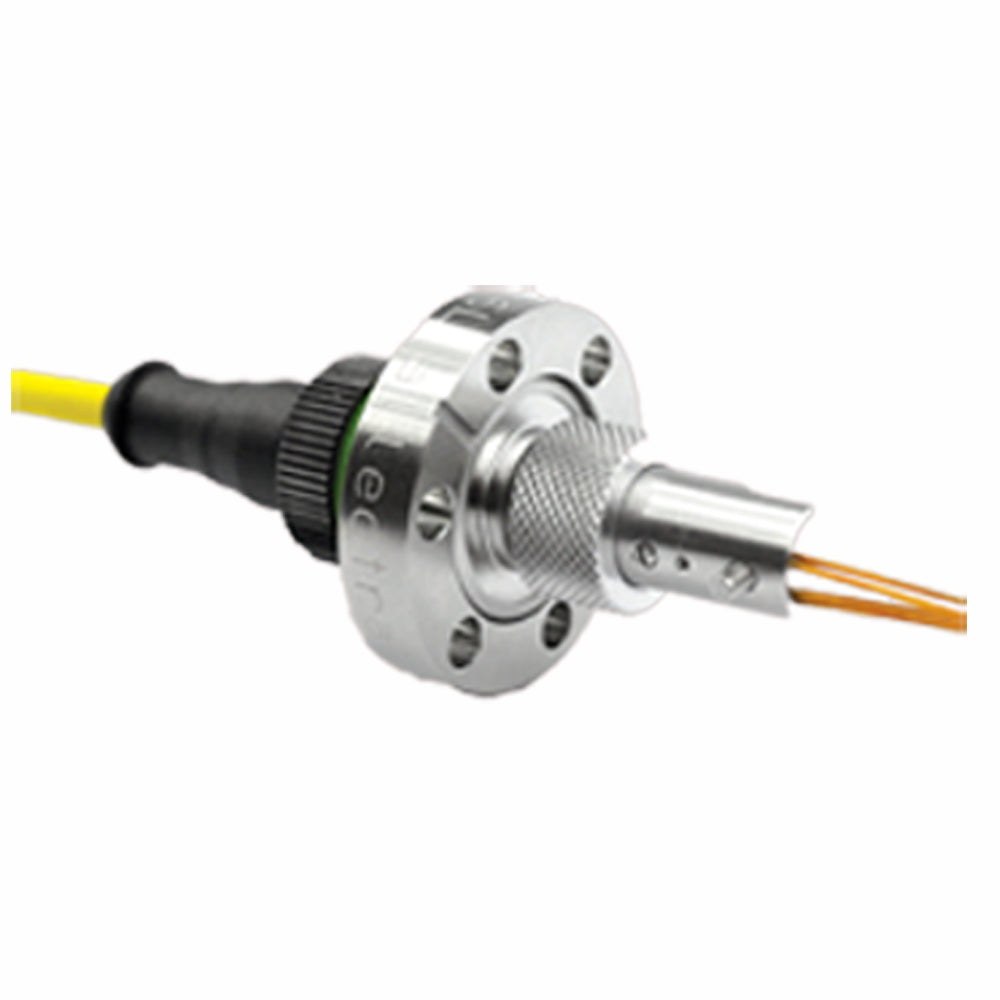

DN16CF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, 5m CABLE

Allectra SKU: 220-M12X4-SET-C16
DN16CF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, 5m CABLE

DN16CF FLANGE WITH M12 FEEDTHROUGH SET, UHV & AIR SIDE CONNECTORS, 5m CABLE

Allectra SKU: 220-M12X4-SET-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

DN16CF M12 SET, INCLUDES: 4-PIN FEEDTHROUGH, UHV CONNECTOR & VACUUM-COMPATIBLE CRIMP PINS, AND STRAIGHT AIR SIDE CONNECTOR WITH 5000mm OF CABLE.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance DIN EN61076-101
  • Body Material SS, PEEK,Al, Au plated CuBe
  • Voltage Rating 250V
  • Max Current 3Amp
  • Temperature Range -200°C to 220°C
  • Number of Pins 4
  • Num in Pack 1
