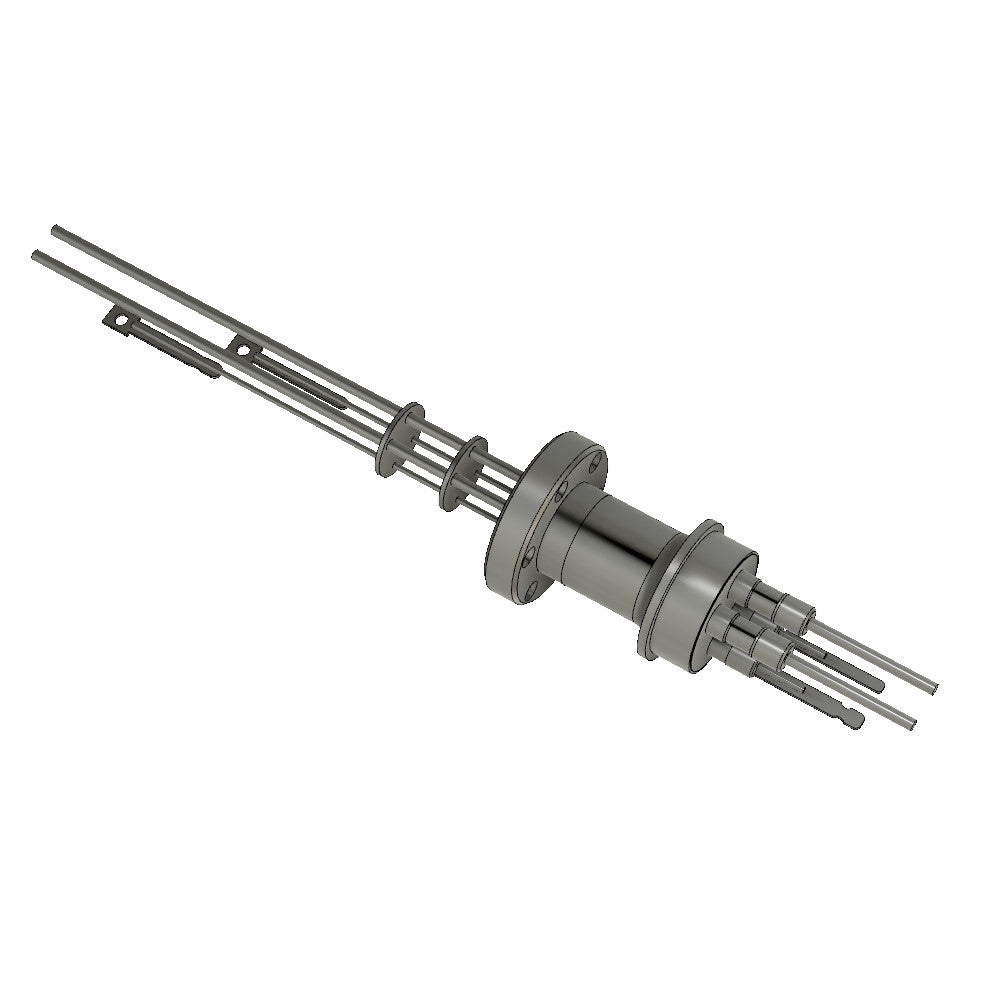

DN16CF COMBINATION FEEDTHROUGH, 2x Cu CONDUCTORS 30A, 1 T/C TYPE K, AIR SIDE CONNECTORS

Allectra SKU: 263-TCK-1-CU30-2-C16
DN16CF COMBINATION FEEDTHROUGH, 2x Cu CONDUCTORS 30A, 1 T/C TYPE K, AIR SIDE CONNECTORS

DN16CF COMBINATION FEEDTHROUGH, 2x Cu CONDUCTORS 30A, 1 T/C TYPE K, AIR SIDE CONNECTORS

Allectra SKU: 263-TCK-1-CU30-2-C16
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN16CF (1.33” OD flange)
  • Compliance Thermocouple type K
  • Pin Gender male
  • Conductor Material Power pins Cu
  • Vacuum Seal ceramic
  • Body Material 304 Stainless steel
  • Voltage Rating 5kV
  • Max Current 30A (2 power pns)
  • Temperature Range -100°C to 450°C (Air side Connector -65oC to 165oC)
  • Number of Pins 4
  • Conductor Diameter 2.4mm
  • Num in Pack 1
