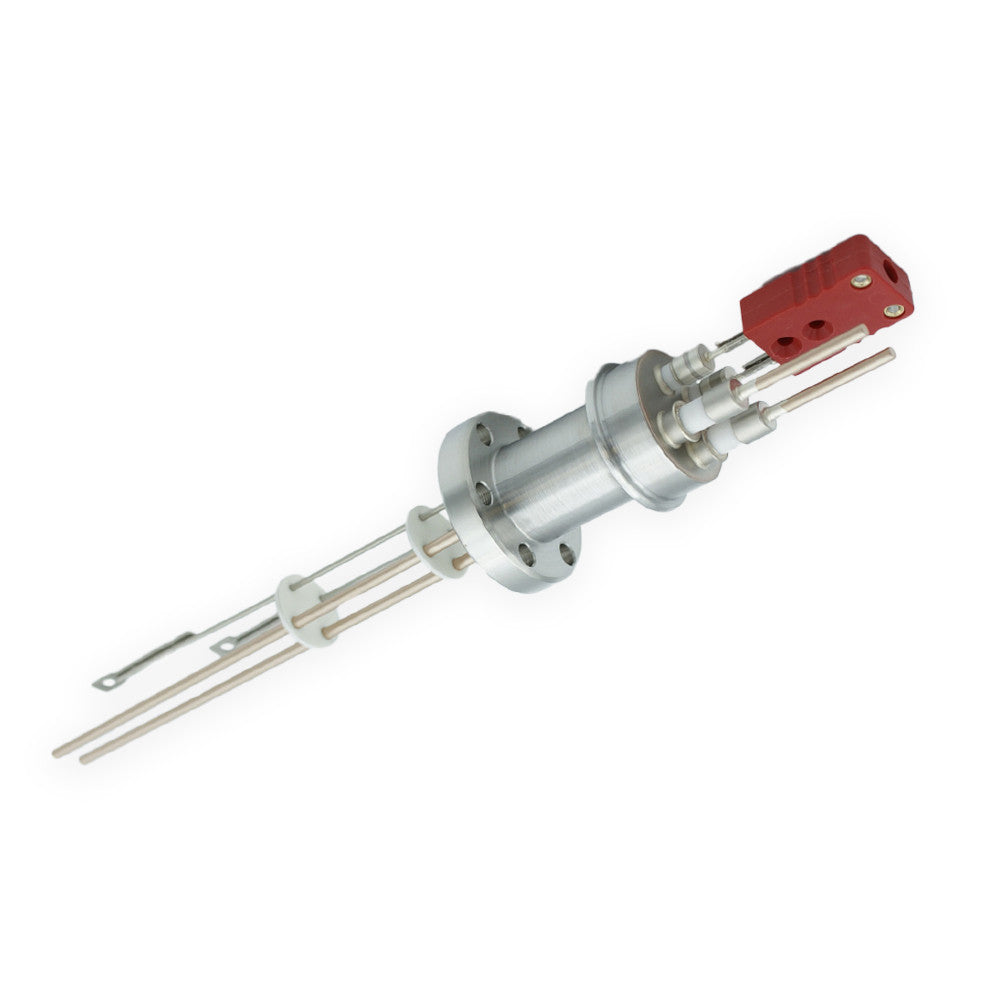

DN16CF COMBINATION FEEDTHROUGH, 2 POWER PINS, 5KV, 30A, 1 T/C PAIR TYPE C, AIR & VAC SIDE CONNECTORS
Allectra
SKU: 263-TCC-1-CU30-2-C16
• Combination Feedthrough – Designed where both power leads & temperature measurement is required. • 1 Pair C type thermocouple connection • 2 Power pins - 5000 Volts, 30 Amps Per Pin • Miniature thermocouple connector included (airside) • Screw and nut connector included (vac side)
Specifications
- Vacuum Leak Rate UHV <5x10-10 mbar l/s
- Size or DN DN16CF
- Conductor Material Copper (Cu) 2.44mm
- Body Material Stainless Steel 304
- Voltage Rating 5KV
- Max Current 30A Per Pin
- Temperature Range -100°C to 450°C (Air side Connector -65°C to 165°)
- Number of Pins 2
- Number Of Pairs 1
