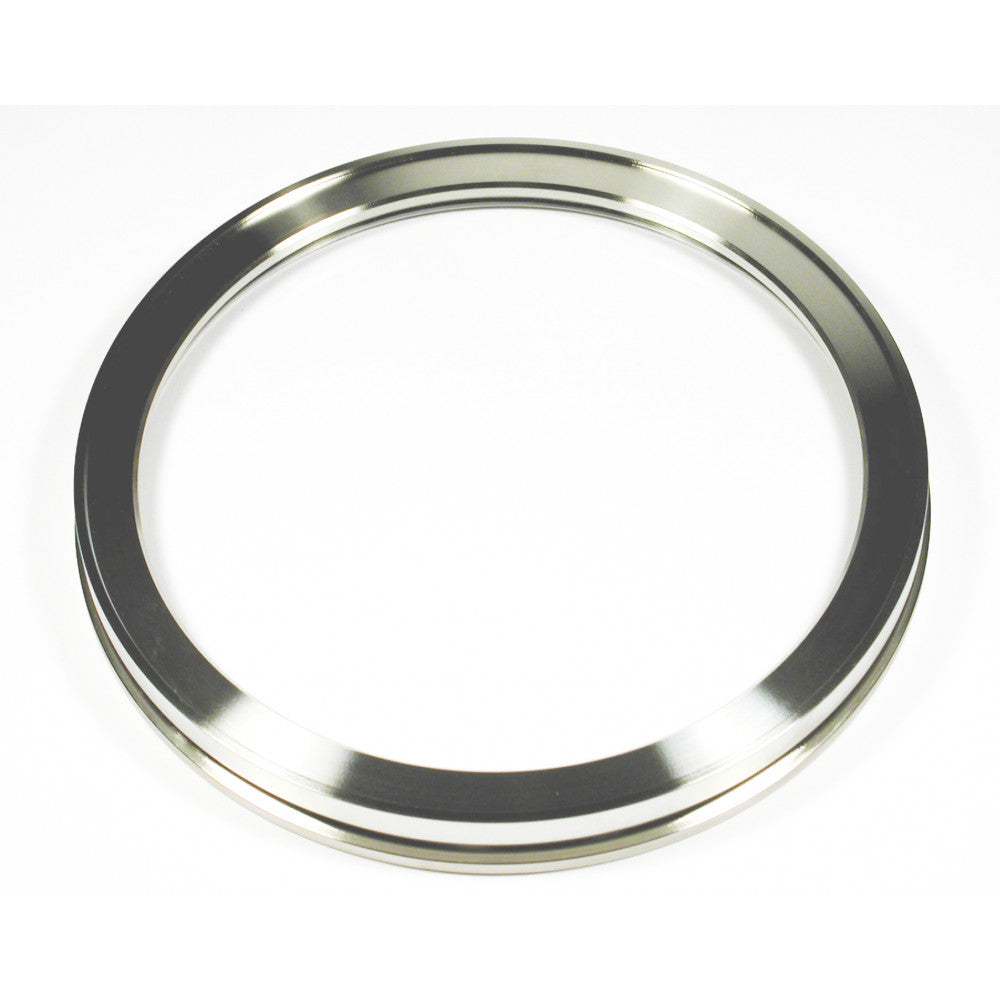

DN160ISO-K STANDARD KODIAL GLASS VIEWPORT, VIEW DIAMETER: 152mm

DN160ISO-K STANDARD KODIAL GLASS VIEWPORT, VIEW DIAMETER: 152mm

Allectra SKU: 120-VPGO-ISO160
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN160ISO-K flange
  • Compliance ISO LF TYPE ISO 2861
  • Vacuum Seal Viton O Ring
  • Body Material Stainless Steel 304
  • Temperature Range 150°C max 3°C per minute
  • Transmission 300-2500nm
  • Inside Diameter 152mm
  • Outside Diameter 180mm
  • Optical Material Kodial Glass
