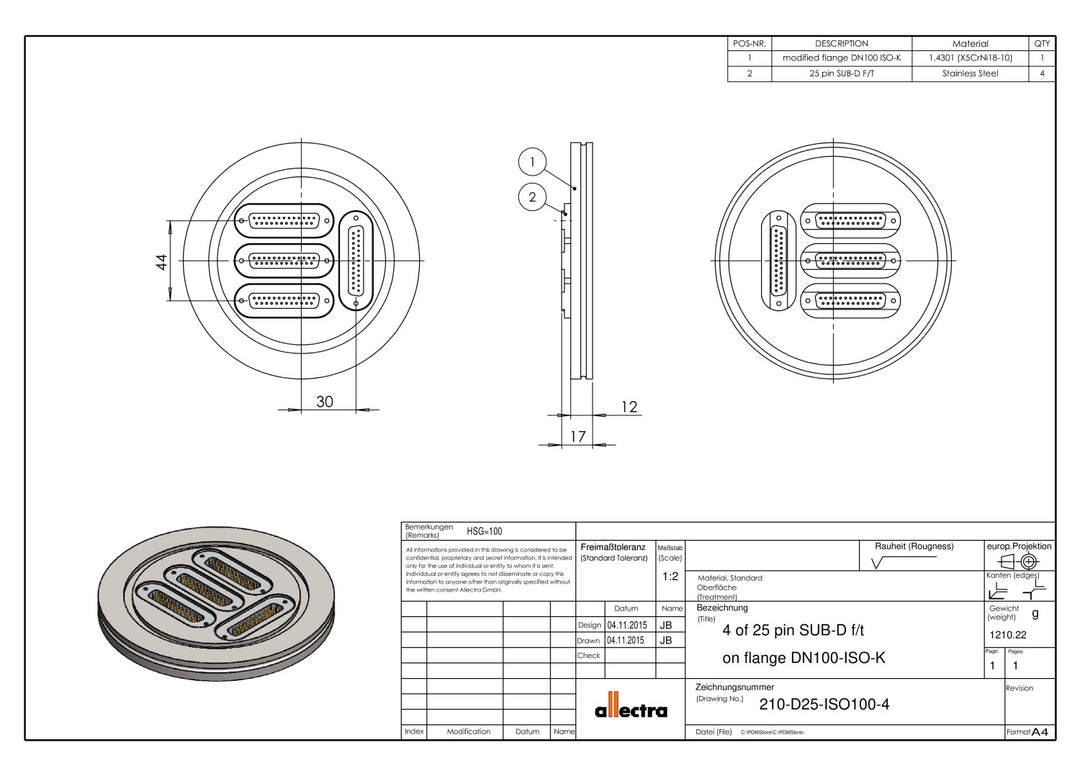

DN100ISO-K FLANGE, 4 x SUB-D 25-WAY FEEDTHROUGHS

Allectra SKU: 210-D25-ISO100-4
DN100ISO-K FLANGE, 4 x SUB-D 25-WAY FEEDTHROUGHS

DN100ISO-K FLANGE, 4 x SUB-D 25-WAY FEEDTHROUGHS

Allectra SKU: 210-D25-ISO100-4
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Use vacuum socket 211-FS25-HV

Specifications

  • Vacuum Leak Rate HV SUB-D <1x10-8 mbar l/s
  • Size or DN DN100ISO-K flange
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -40°C to 200°C
  • Number of Pins 100
  • Conductor Diameter 1mm
