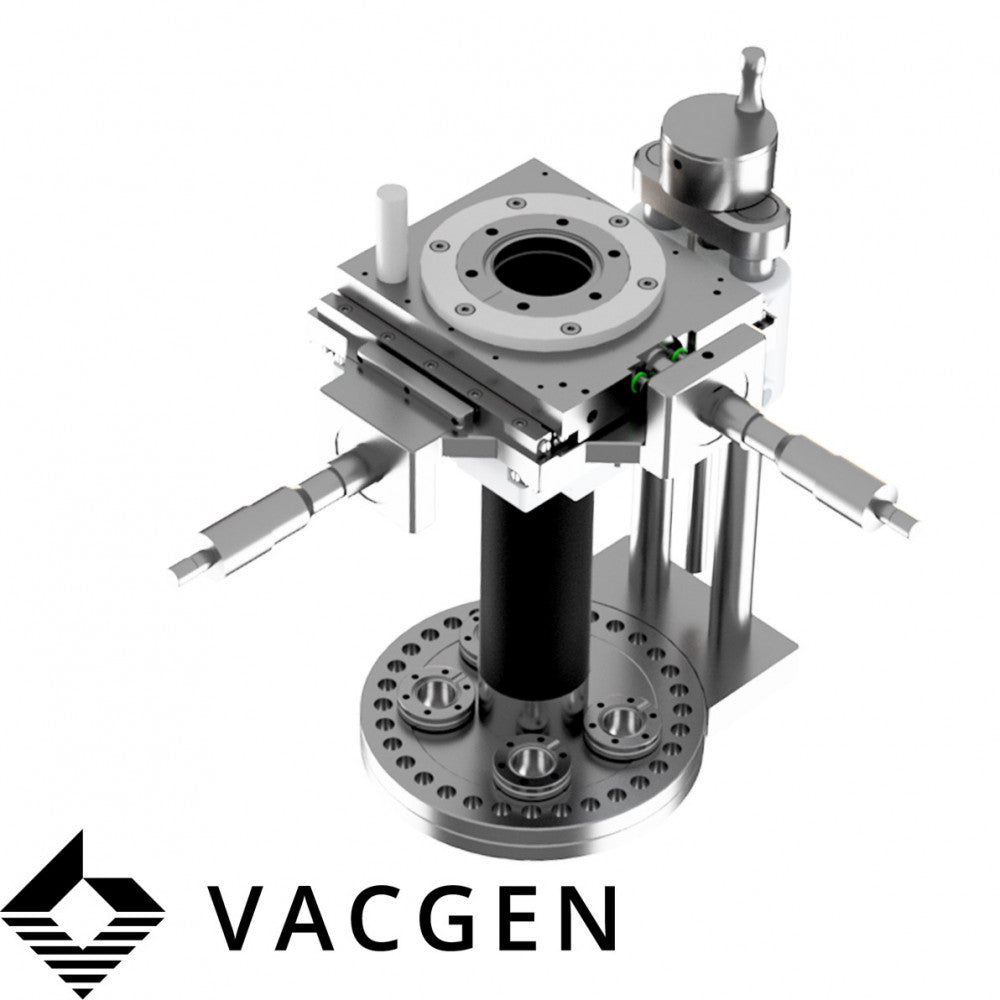

DN100CF XYZ MANIPULATOR WITH 4 x DN16CF PORTS, 100mm Z TRAVEL

Allectra SKU: ZXYZ1015
DN100CF XYZ MANIPULATOR WITH 4 x DN16CF PORTS, 100mm Z TRAVEL

DN100CF XYZ MANIPULATOR WITH 4 x DN16CF PORTS, 100mm Z TRAVEL

Allectra SKU: ZXYZ1015
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• XY travel of ±12.5 mm guided with cross roller bearings. • Bakeable to 200°C. • Standard base flange is 152mm OD (NW100CF) with straddled clearance holes for mounting the translator. • Four mini ports, tapped M4, are provided for service feedthroughs (152mm OD base flange only) • Travelling flange 70mm OD (NW35CF) with M6 tapped holes, straddled about the Y axis • Double bolt holes on mounting flange. • Operating pressure 1 bar to 10-11 mbar • Leak rate 1x10-10 mbar ls-1 • XY Resolution 0.001 mm repeatability 0.005 mm • Z Resolution 0.005 mm repeatability 0.010 mm

Specifications

  • Size or DN DN100CF Base flange with 4 x DN16CF ports
  • Temperature Range Bakeable to 200°C
  • Dimension A 160mm to 210mm
  • Dimension C 301mm
  • Travel 100mm Z
