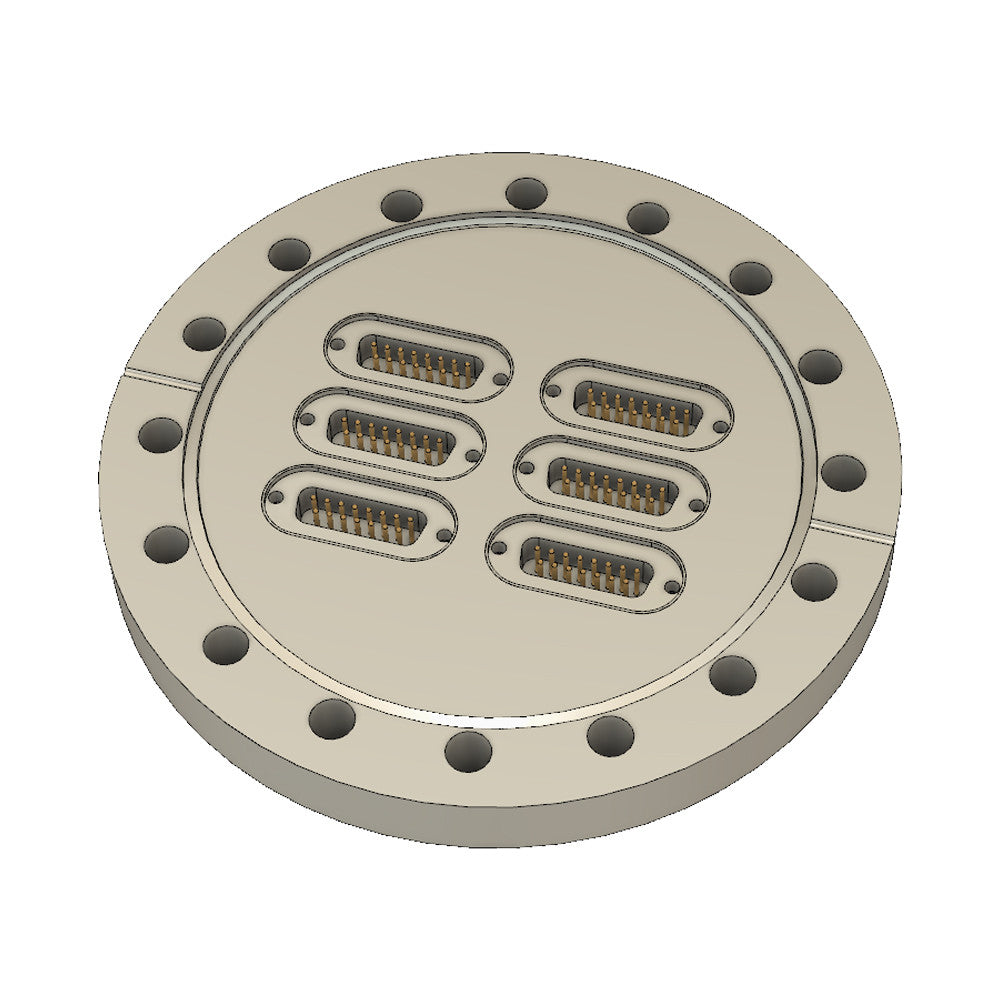

DN100CF FLANGE WITH 6 x SUB-D 15 WAY FEEDTHROUGH, UHV

Allectra SKU: 210-D15-C100-6
DN100CF FLANGE WITH 6 x SUB-D 15 WAY FEEDTHROUGH, UHV

DN100CF FLANGE WITH 6 x SUB-D 15 WAY FEEDTHROUGH, UHV

Allectra SKU: 210-D15-C100-6
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN100CF (6” OD flange)
  • Pin Gender Male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass Ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V
  • Max Current 5A per pin
  • Number of Pins 15 per Feedtrough
  • Conductor Diameter 1mm
