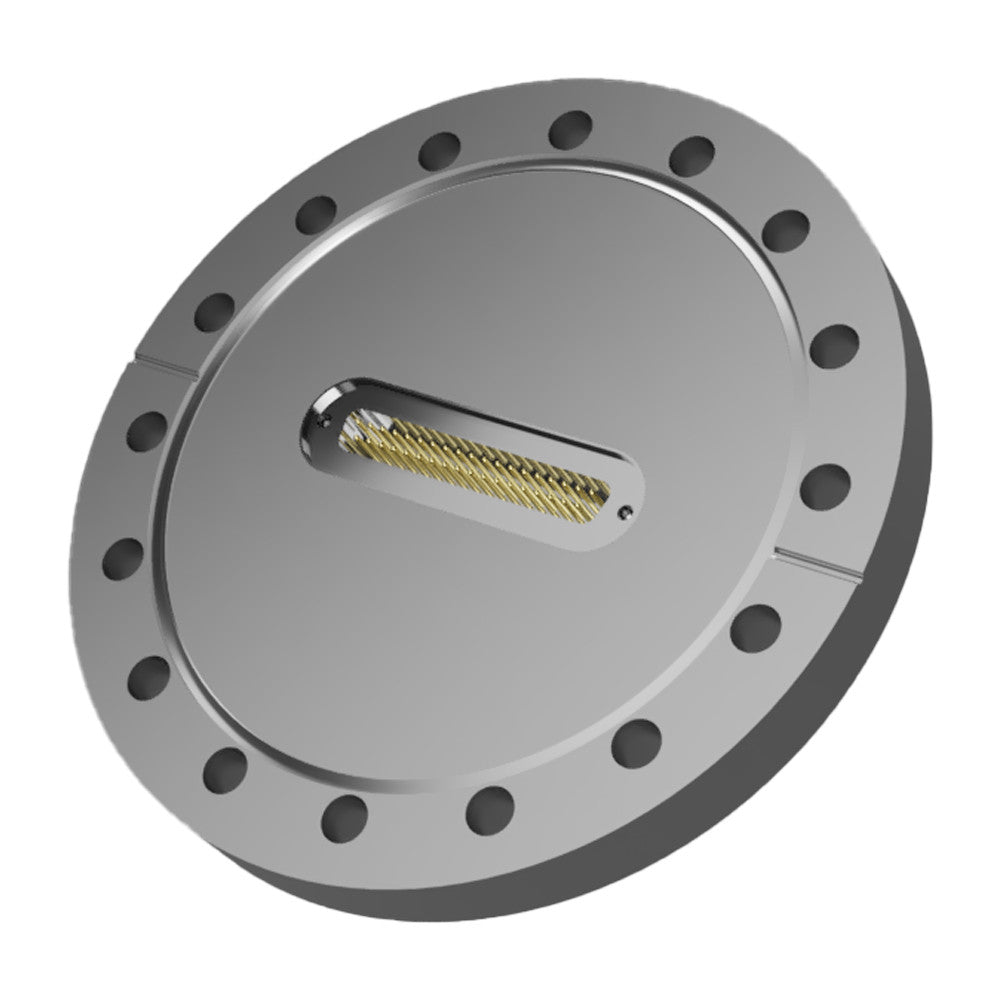

DN100CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV

DN100CF FLANGE, SUB-D 37-WAY FEEDTHROUGH, UHV

Allectra SKU: 210-D37-C100
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN100CF (6” OD flange)
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material Stainless Steel 316L
  • Voltage Rating 500V DC
  • Max Current 5A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 37
  • Conductor Diameter 1mm
