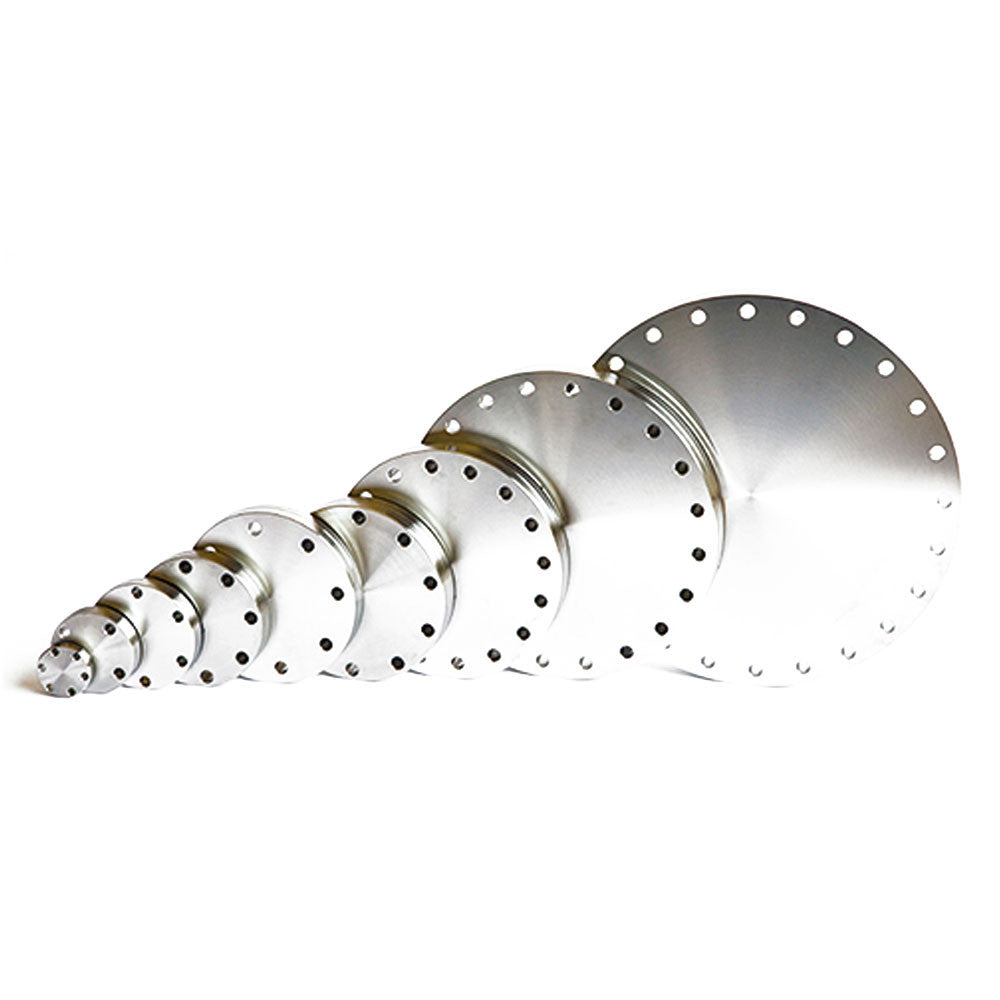

DN100CF blank fixed flange, SS 316LN (1.4429)

316LN Stainless Steel is a nitrogen enhanced version of 316L. It has a very low magnetic permeability and is suitable for applications where magnetic effects must be avoided. Flanges larger than 40CF are made from forged billets. This flange comes with 16 size M8 bolt holes.

Specifications

• Vacuum Leak Rate UHV <5x10-10 mbar l/s
• Size or DN DN100CF (6” OD flange)
• Compliance CF as ISO 3669-2
• Vacuum Seal Knife edge/ Cu or Viton gasket
• Body Material 316LN 1.4429
• Magnetic Permeability >1.005
• Temperature Range -273°C - 450°C
• Outside Diameter 152(6”)
• Thickness 19.9
