Cleanroom Gloveboxes

VIGOR USA SKU: Cleanroom-GB
VIGOR USA Glovebox - Nano Vacuum Australia & New Zealand
VIGOR USA ISO-4 Cleanroom Gloveboxes - Nano Vacuum Australia & New Zealand
VIGOR USA Glovebox - Nano Vacuum Australia & New Zealand

Cleanroom Gloveboxes

VIGOR USA SKU: Cleanroom-GB
Your inquiry was submitted successfully. You can expect to hear from us shortly.

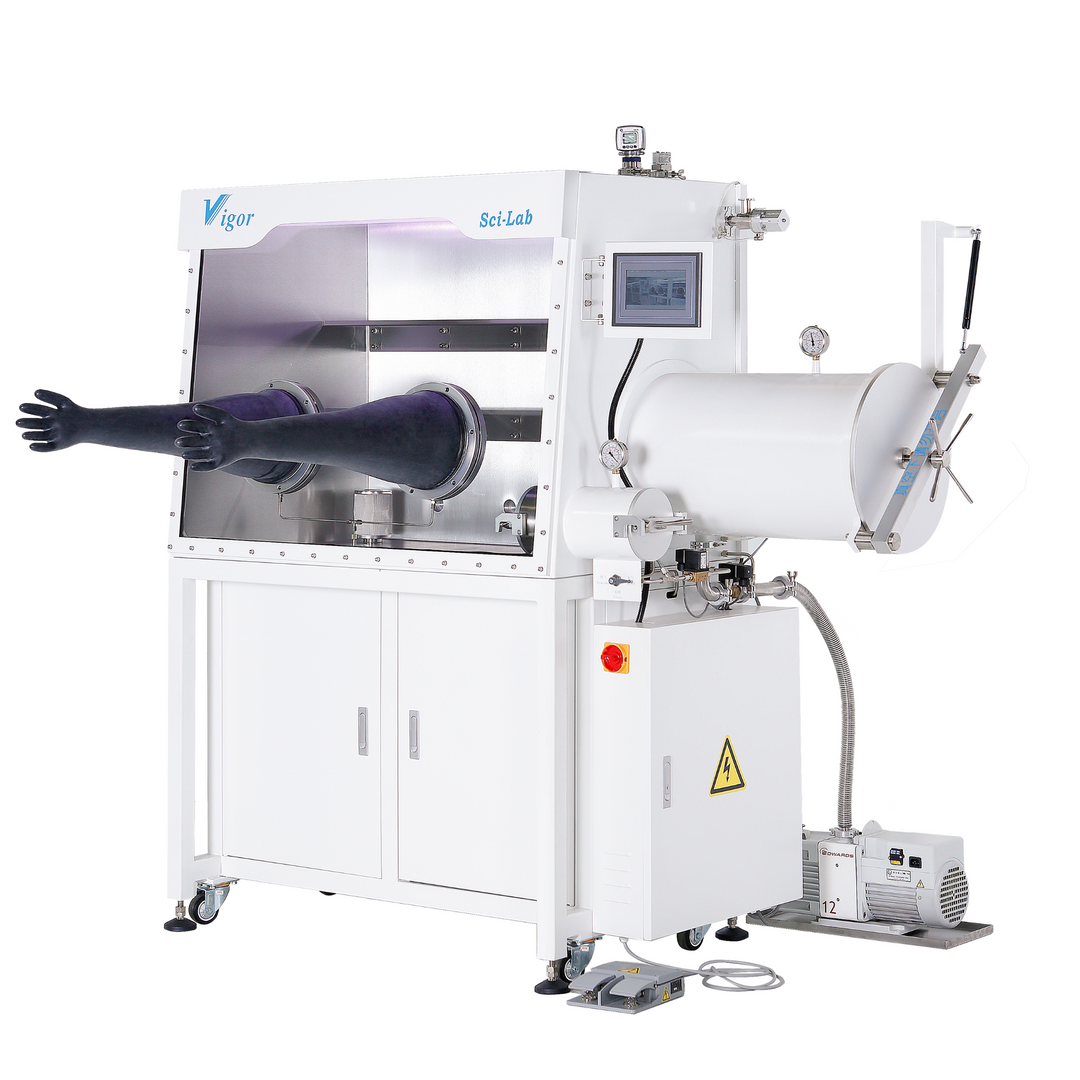

Cleanroom gloveboxes by Vigor USA have the added features of an integrated cleanroom environment. They are available either as built in (ISO-5) or top mounted (ISO-4).

Vigor’s glovebox design represents premium top-of-the-line features. Our super-high purifier capacity and patented sealing technology are complimentary. Vigor's all-welded stainless-steel design minimizes potential points of leakage and allows you to have a fast and easy initial set up. Our unique seals enable our gloveboxes to experience exceptionally low leakage rates (<0.001 vol%/h).

We combine our exceptional all-welded platform with the expected high quality ancillary components: Siemens PLCs, Burkert valves, Edwards vacuum pumps, General Electric fuel cell oxygen analyzers, General Electric or Michell moisture analyzers, and Fuji blowers. Our purification train is also an impressive performer: its capacity is typically 2-3 times higher than that of other gloveboxes. Any accessory that you need to make your research easier can easily be integrated since each glovebox is custom made.

Features

Patented Leak Free Sealing Technology

▪  Ultra-low leakage rate (over an order of magnitude lower than the industry standard of 0.05 vol%l/h)

▪  Ultra-low impurity levels (O2 and H2O quickly drop below 1 ppm)

▪  Low regeneration frequency (usually once per year)

▪  Long seal lifetime, often over 10 years without any signs of leakage

▪  Ultra-low energy consumption

High Efficiency Purificaiton System

▪  High Efficient

▪  Low moisture and oxygen contents (<1 ppm)

Accurate O2 & H2O Analysis

▪  Oxygen Analyzer: Excellent Accuracy, especially at low ppm. Not affected by solvents. Low cost, replaceable sensor

▪  Moisture Analyzer: Accurate, reliable, widely used. No maintenance required    Low cost, replaceable sensor


Specifications

Box

Material 304SS
Dimensions (mm) Length: 1200/1500/1800/2400mm
Width: 750mm
Height: 900mm
Shelves Length: 990/1290mm
Width: 180mm
304SS
Fixed or adjustable shelves
Window Toughened glass
Thickness: 8mm
Lighting LED
Glove Ports Aluminum
O-ring Sealed
Diameter: 220mm
Gloves Butyl rubber
Thickness: 0.4mm
Feedthrough KF 40 flanges sealed with blank caps
Power Interface 110/220V
Filters Mounted on the vents
Large Antechamber Material 304SS
White external varnish
Brushed inner surface
Location Left or right side
Dimensions Inner diameter: 370mm
Inner length: 600mm
Transfer Mode Sliding tray
Internal Tray 304SS
Door Double doors
Anodised aluminum
Thickness: 10mm
Operation Mode Manual and automatic
Optional Antechamber Rectangle/L-shaped/Cylindrical T-shaped/Rectangle T-shaped
Small Antechamber Material 304SS
White external varnish
Brushed inner surface
Location Left or right side
Dimensions Inner diameter: 150mm
Inner length: 300mm
Transfer Mode Sliding tray
Internal Tray 304SS
Door Double doors
Anodised aluminum
Thickness: 10mm
Operation Mode Manual
Stand Adjustable levelers and castors for mobility
Power Line 230V/50Hz, option for 2 or 3 prong outlet


Gas Purification Systems

Single/Double Column/Regenerable Organic Column:

Items Single Column Double Column Regenerable Organic Column
Dimensions(mm)LxWxH 550x880x830 610x1180x830 605x880x830
Gas Purification Column 1 2(One for backup) 1
Capacity O2:45-60L   H2O:2-2.5kg O2:90-120L   H2O:4-5kg -
It can be regenerated by hydrogen-containing working gas to restore purification capacity after saturation.
Organic Solvent Column 1 1
Regenerable
Circulation Blower 1 (Rate of Flow: 60 or 90m³/h)


Technical Parameter:

▪  Control System: PLC by Siemens, 7"color touchscreen

▪  Vacuum Pump: Oil pump,Maximum velocity: 12m3/h

▪  Tube: Stainless steel

▪  Main Control Valve: Electromagnetic pneumatic valve/Electric pneumatic control

▪  Working Gas: N2, Ar, H2

▪  Regeneration Gas: N2, Ar & H2 mixture (H2 Concentration:5-10 %)

▪  Operation Mode: Closed-circuit circulation

▪  Purification Area: Maximum: 5m³

▪  Criterion: H2O<1PPM;O2<1PPM

▪  Regeneration: Automatic programming

▪  Box Pressure Control: Automatic pressure control,pedal and manual control  (Adjustable Pressure Range:± 10mbar)

Optional Accessories:

Oxygen Analyzer

▪  Moisture Analyzer

▪  Protector for Moisture/Oxygen Analyzer

▪  Gas/Liquid/Vacuum Feedthrough with single-valve

▪  Gas/Liquid/Vacuum Cooling Feedthrough

▪  Gas/Liquid/Vacuum Feedthrough with double-valve

▪  Electrochemical Feedthrough

▪  BNC Feedthrough

▪  Power Feedthrough

▪  Power Plug

▪  Activated Carbon

▪  Copper Catalyst & Molecular Sieve

▪  Oil Pump

▪  Dry Pump

▪  Oil for Vacuum Pump

▪  Air Conditioner

▪  Freezer

▪  Heat/Cold Trap

▪  Hot Plate

▪  Heating Antechamber(Cylindrical)

▪  T-shaped Antechamber

▪  Oil-mist Filter & Oil-return Device

▪  Glove-port Cover

▪  Static Eliminator

▪  Dedusting System

▪  Spin Coater

▪  Microscope

▪  OLED Packing System
