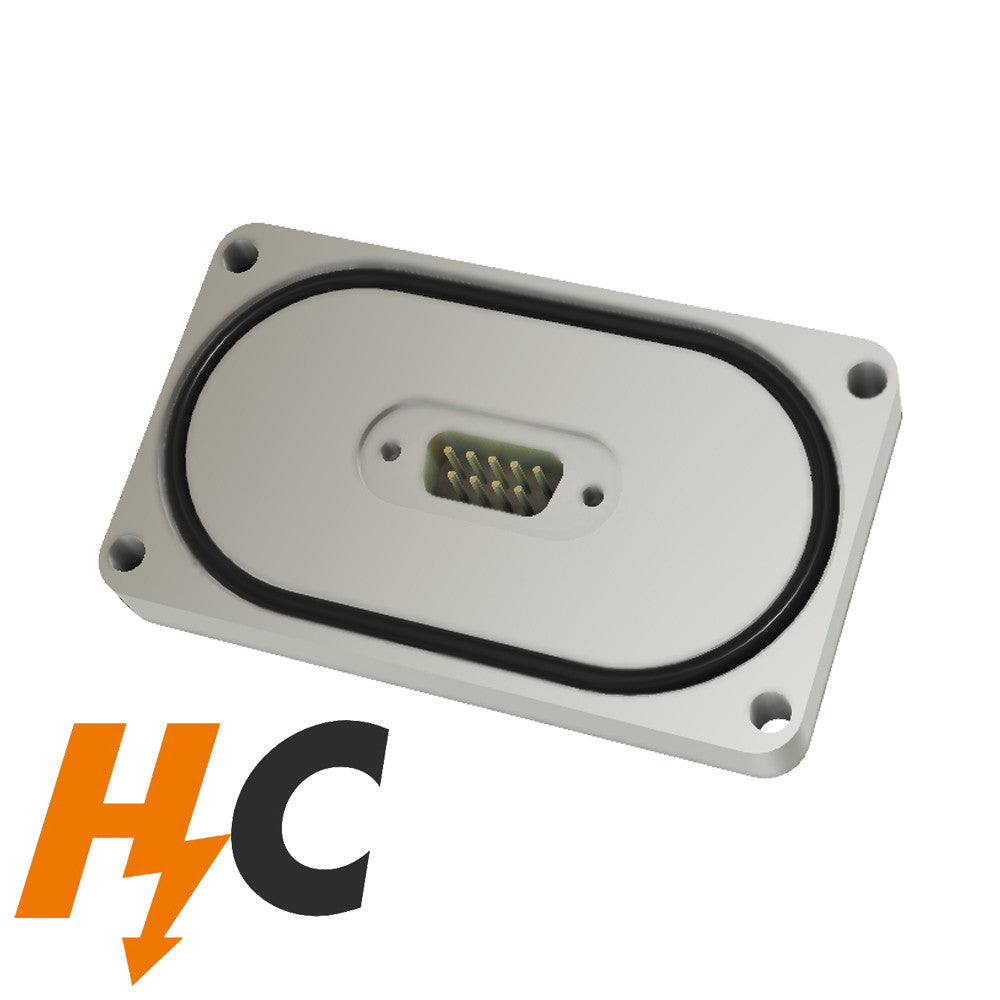

BASE PLATE 9 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

Allectra SKU: 215-BP-D09-HC
BASE PLATE 9 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

BASE PLATE 9 PIN SUB-D FEEDTHROUGH, HIGH CURRENT VERSION,O-RING SEALED (HIGH VACUUM ONLY)

Allectra SKU: 215-BP-D09-HC
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• For applications down to 10-7 mbar • Rectangular base plate 9/15/25/37/50 pin feedthroughs available • Other feedthroughs mountable to same base plate (Coaxial for example) • Base plate dimensions the same for all feedthroughs making them easily interchangeable

Specifications

  • Vacuum Leak Rate <1x10-9 mbar-l/s He (HV)
  • Pin Gender male
  • Vacuum Seal Viton O Ring (Included)
  • Voltage Rating 500V
  • Max Current 6A per pin all loaded, 10A for 5 minutes
  • Temperature Range -40°C to 200°C
  • Number of Pins 9
