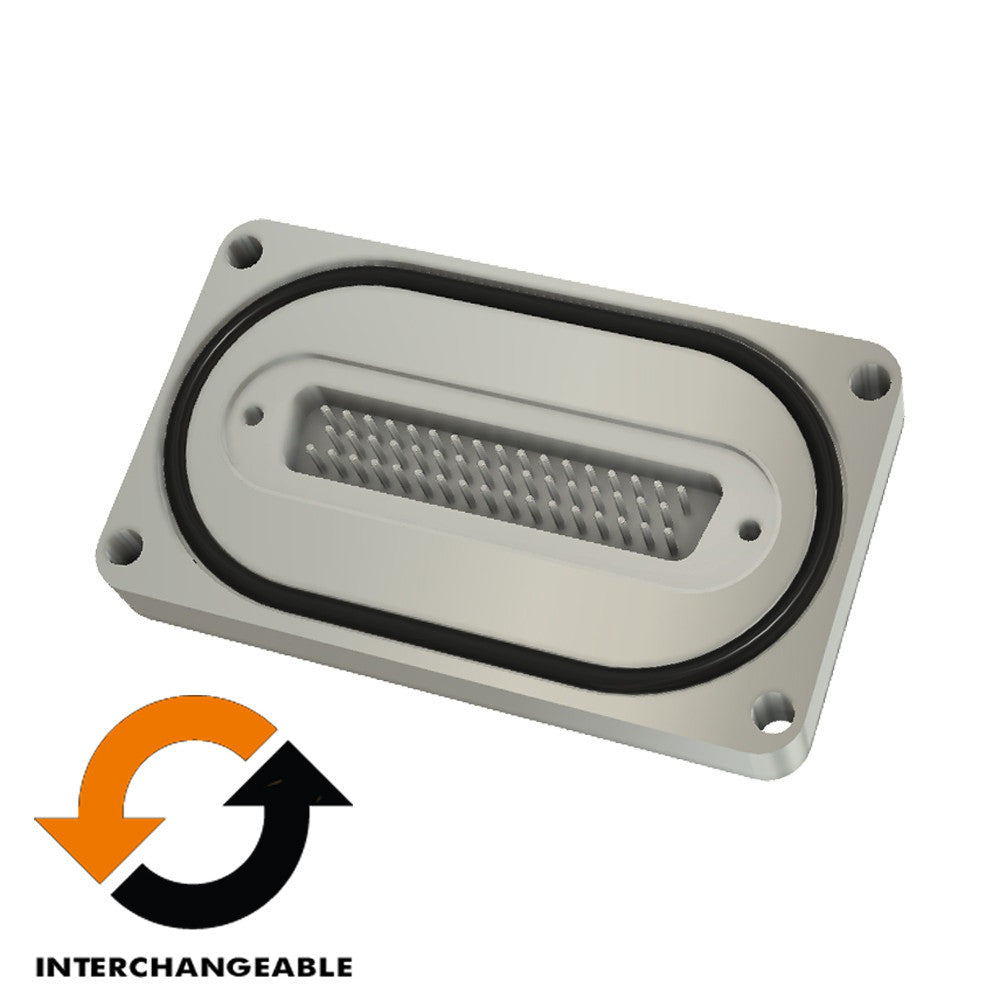

BASE PLATE 50 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

• For applications down to 10-7 mbar • Rectangular base plate 9/15/25/37/50 pin feedthroughs available • Other feedthroughs mountable to same base plate (Coaxial for example) • Base plate dimensions the same for all feedthroughs making them easily interchangeable.

Specifications

• Vacuum Leak Rate <1x10-9 mbar-l/s He (HV)
• Pin Gender male
• Vacuum Seal Viton O Ring (Included)
• Voltage Rating 500V
• Max Current 5A per pin
• Temperature Range -40°C to 200°C
• Number of Pins 50
