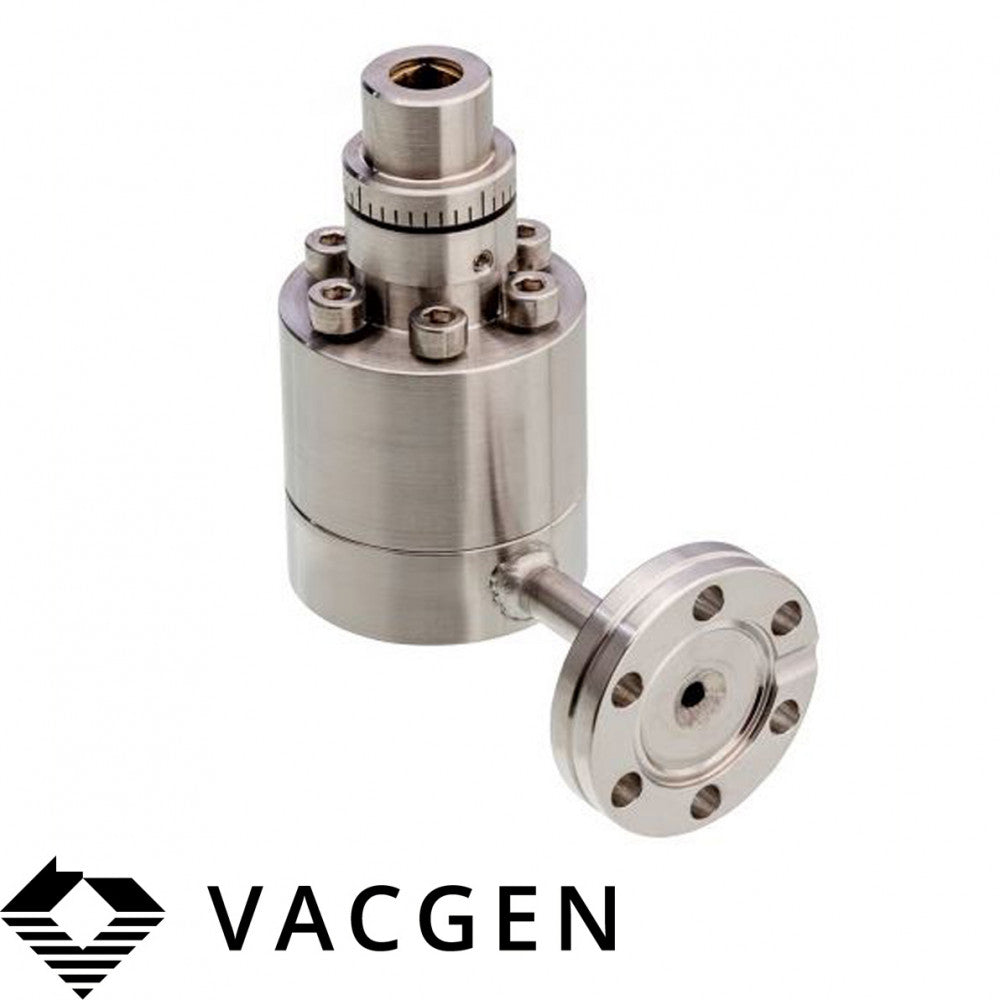

Valve Leak Manual 90° Demountable 1 x Fixed, 1 x Tapped DN16CF

Allectra SKU: ZMD95
Valve Leak Manual 90° Demountable 1 x Fixed, 1 x Tapped DN16CF

Valve Leak Manual 90° Demountable 1 x Fixed, 1 x Tapped DN16CF

Allectra SKU: ZMD95
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• Valve can withstand hot or corrosive gases • High inlet pressure (up to 10 bar) • Low internal volume • User serviceable • Operating pressure range from 1 bar to 10-7 mbar • Bakeable to 450°C • UHV compatible • 304L stainless steel body with Nickel sealing disc

Specifications

  • Vacuum Leak Rate 1x10-12 mbar.l.s-1
  • Size or DN DN16CF
  • Body Material 304L Stainless steel
  • Temperature Range Open 450°C, Closed 250°C
  • Conductance 0.1 L/sec
  • Max. Inlet Pressure 10 bar
  • Service Life 100,000 Cycles
