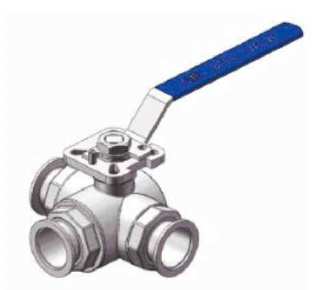

3-Way Vacuum Ball Valves (T-Type) have the advantage of sharing one vacuum pump between two applications. These ball valves have an NW-KF vacuum flange for connection to the vacuum system, are manually operated, and made of stainless steel.

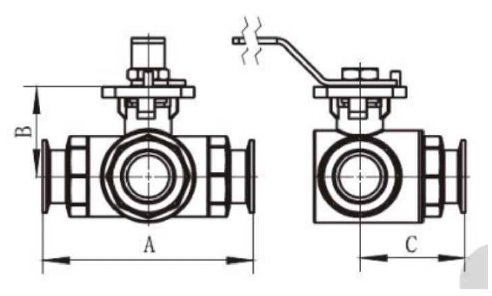

| Size | A | B | C |
| KF16 | 110mm | 50mm | 55mm |
| KF25 | 110mm | 50mm | 55mm |
| KF40 | 160mm | 68mm | 80mm |
