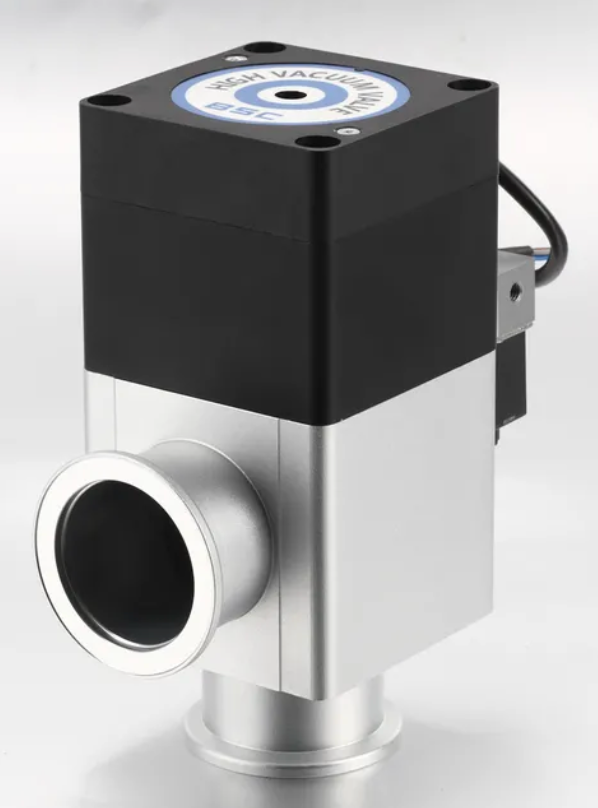

KF Pneumatic Right Angle Valves, Al, 24VDC Solenoid

KF Pneumatic Right Angle Valves, Al, 24VDC Solenoid

Nano Vacuum SKU: GDQ-J16B
Size
Price
Save $-260
/
  • Worldwide shipping
  • Free returns
  • Price promise
  • Secure payments
  • Low stock - 1 item left
  • Backordered, shipping soon
  • Estimated Leadtime = days

NanoVac right angle aluminium pneumatic bellows sealed valve with 24VDC solenoid and limit switches, offer a reliable and economical isolation solution for high and very high vacuum applications.

Technical Parameter :
Pressure Range Pa 1×10-6Pa～1.2×105Pa(Sylphon seal)
1×10-5Pa～1.2×105Pa(Fluoro-ring seal)
Nominal Diameter mm 40
Percolation Pa·L/s ≤1.3×10-7
Fist Maintenance Cycle Time per 1000 000(Sylphon seal)
600 000(Fluoro-ring seal)
Body Baking Temp. ℃ ≤120
Power — Alternating current 220V 50Hz,6W or direct current 24V,3W(Special specification can be customized)
On or off time s ≤1
Compressed air MPa 0.4~0.7
Valve Location Indication — Passive switch signal output+ mechnical indication
Installation Location — Anywhere
Ambient Temp. ℃ 5~40
