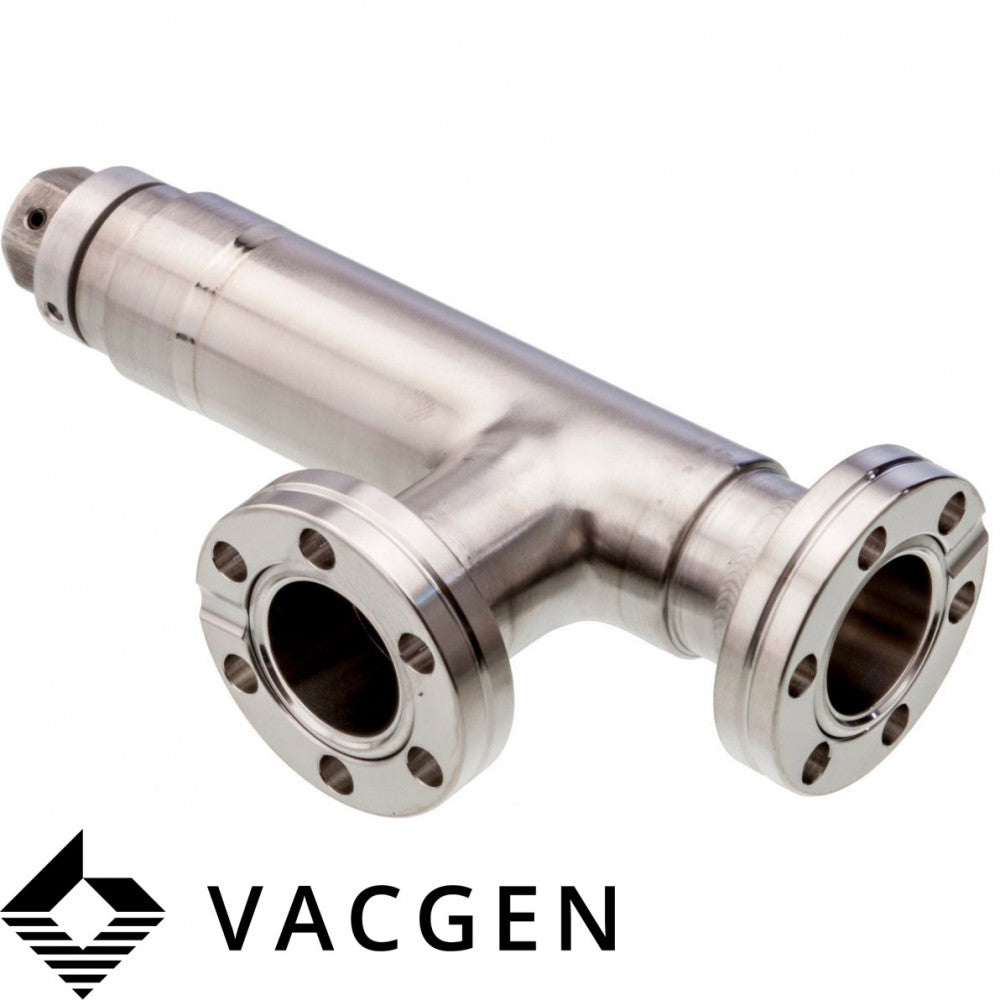

Valve All Metal Manual Right Angle - Rotatable DN16CF

• Right angle all metal valve, offering excellent conductance • The CR series comes with two body types, fully welded CR series or demountable CRD series • CR valves can be shut off to a torque level or by aligning the indicator marks on the body and the top nut • A separate operating handle is included with the valve • Rotatable flanges are used on both valve axis • VACGEN All Metal Right Angle Valves provide 10,000 cycles between services • Only high grade 304L materials are used • A rigid mechanism provides a repeatable seal

Specifications

• Vacuum Leak Rate <10-10 mbar.l.s- -1
• Size or DN DN16CF Rotatable
• Vacuum Seal Copper
• Body Material Stainless Steel 304L
• Temperature Range Open 450°C, Closed 300°C
• Conductance 5 L/sec
• Dimension A 38mm
• Dimension B 59mm
• Dimension C 86mm
• Dimension D 22mm
• Construction Welded
