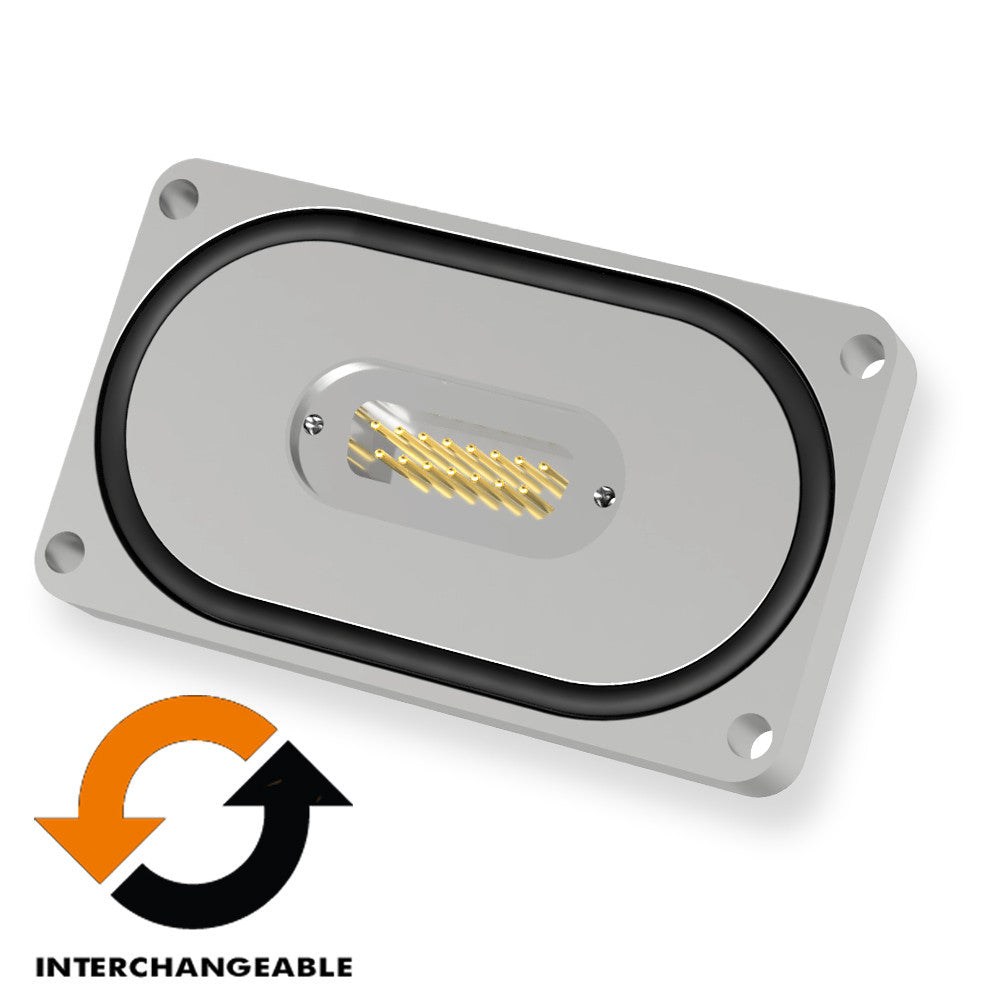

BASE PLATE 15 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

Allectra SKU: 215-BP-D15
BASE PLATE 15 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

BASE PLATE 15 PIN SUB-D FEEDTHROUGH, O-RING SEALED (HIGH VACUUM ONLY)

Allectra SKU: 215-BP-D15
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• For applications down to 10-7 mbar • Rectangular base plate 9/15/25/37/50 pin feedthroughs available • Other feedthroughs mountable to same base plate (Coaxial for example) • Base plate dimensions the same for all feedthroughs making them easily interchangeable.

Specifications

  • Vacuum Leak Rate <1x10-9 mbar-l/s He (HV)
  • Pin Gender male
  • Vacuum Seal Viton O Ring (Included)
  • Voltage Rating 500V
  • Max Current 5A per pin
  • Temperature Range -40°C to 200°C
  • Number of Pins 15
