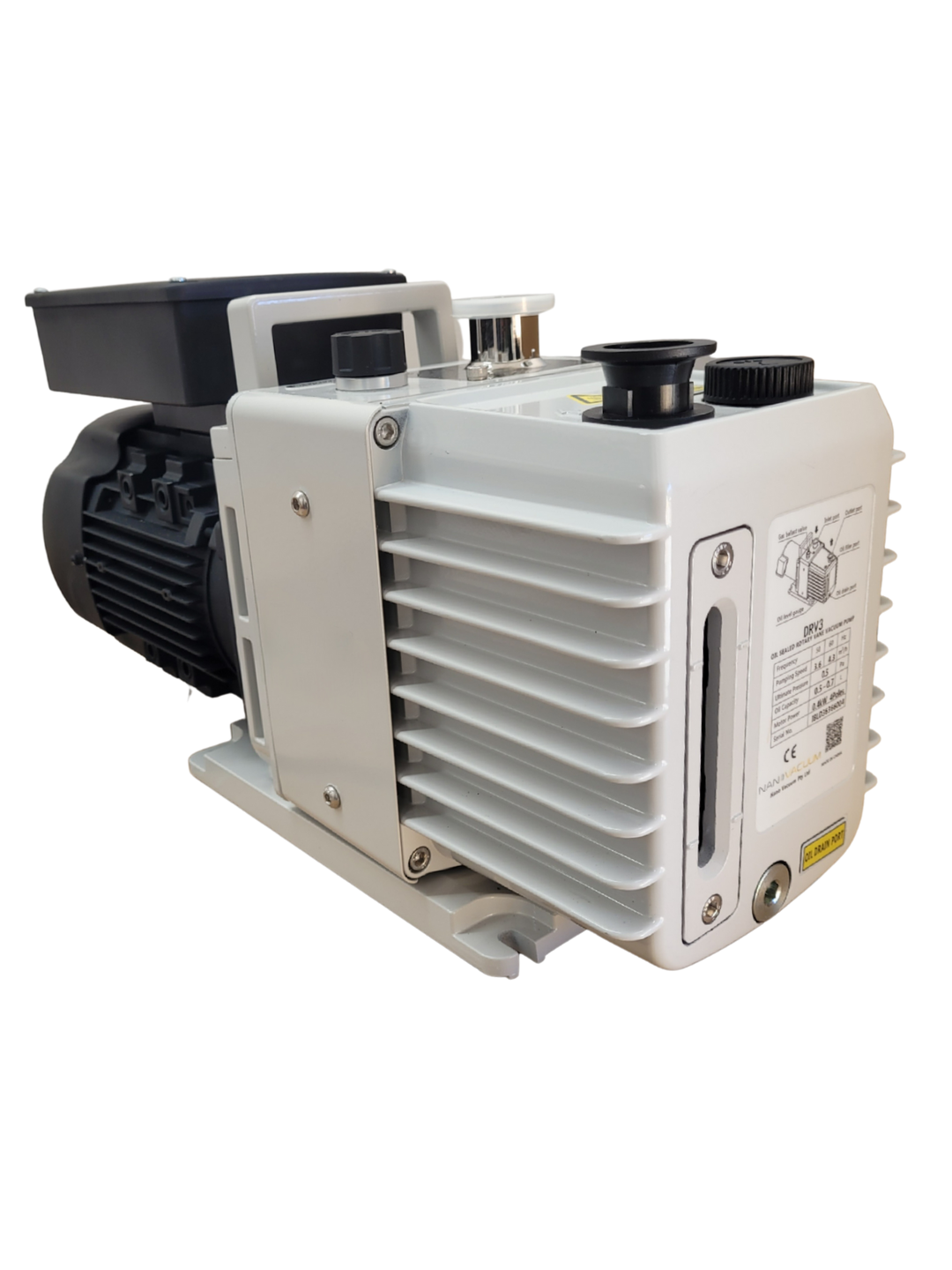

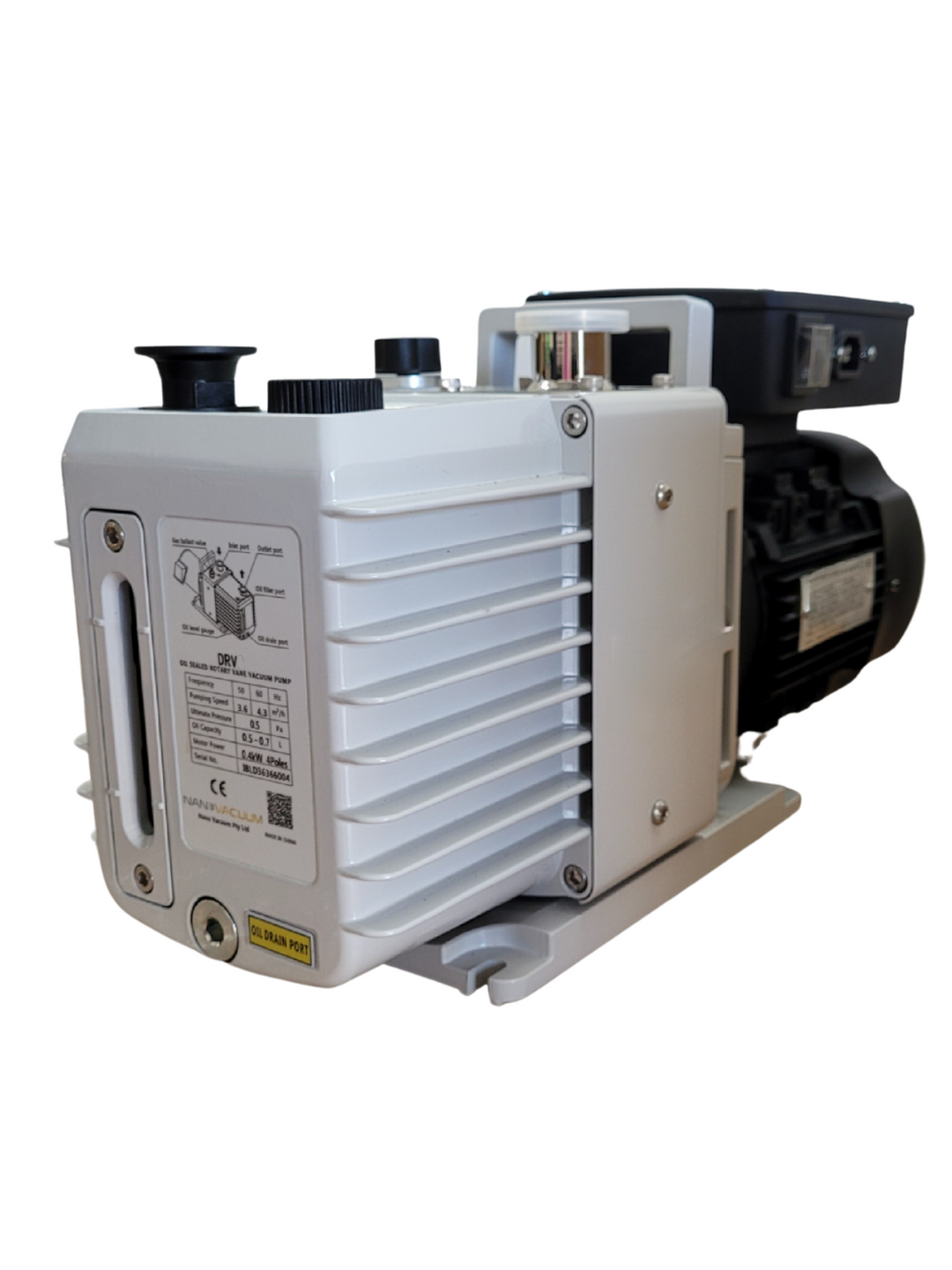

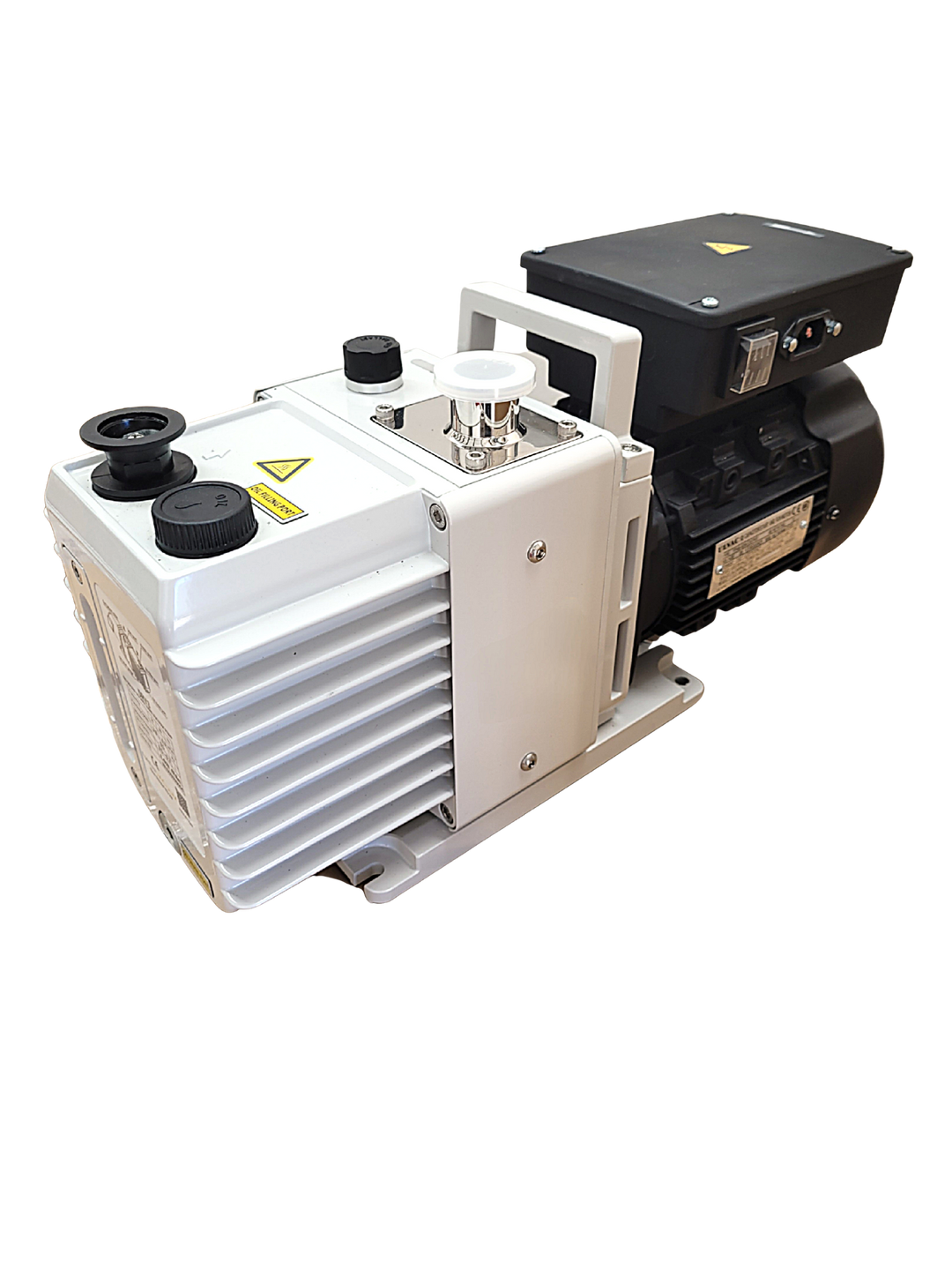

The Nano Vacuum DRV Series Rotary Vane Vacuum Pumps are rugged oil sealed high vacuum laboratory pumps suitable for a variety of applications including schlenk lines, distillation, rotary evaporation, freeze drying, gloveboxes, molecular evaporation, separation, filtration, analytical instruments and many more....
The DRV pumps include:
- Non-spring rotary vane design to achieve low noise, low vibration and long service life
- Integrated oil check valve to prevent backstreaming into your process
- Direct injection oil pressure lubrication for low maintenance and long service lifetime
- Modular design for easy assembly/disassembly and maintenance access
- Quiet motor for a comfortable lab environment
Technical Specifications:
|
Peak Pumping Speed: |
14.4 m^3/hr |
|
Ultimate Pressure (Total): |
5.0 x 10^-3 mbar (50Hz) |
|
Noise |
<54dBA |
|
Inlet/Outlet Flange: |
NW25 KF |
|
Motor Type: |
1ph 230V, 50Hz |
| Weight | 27 kg |
