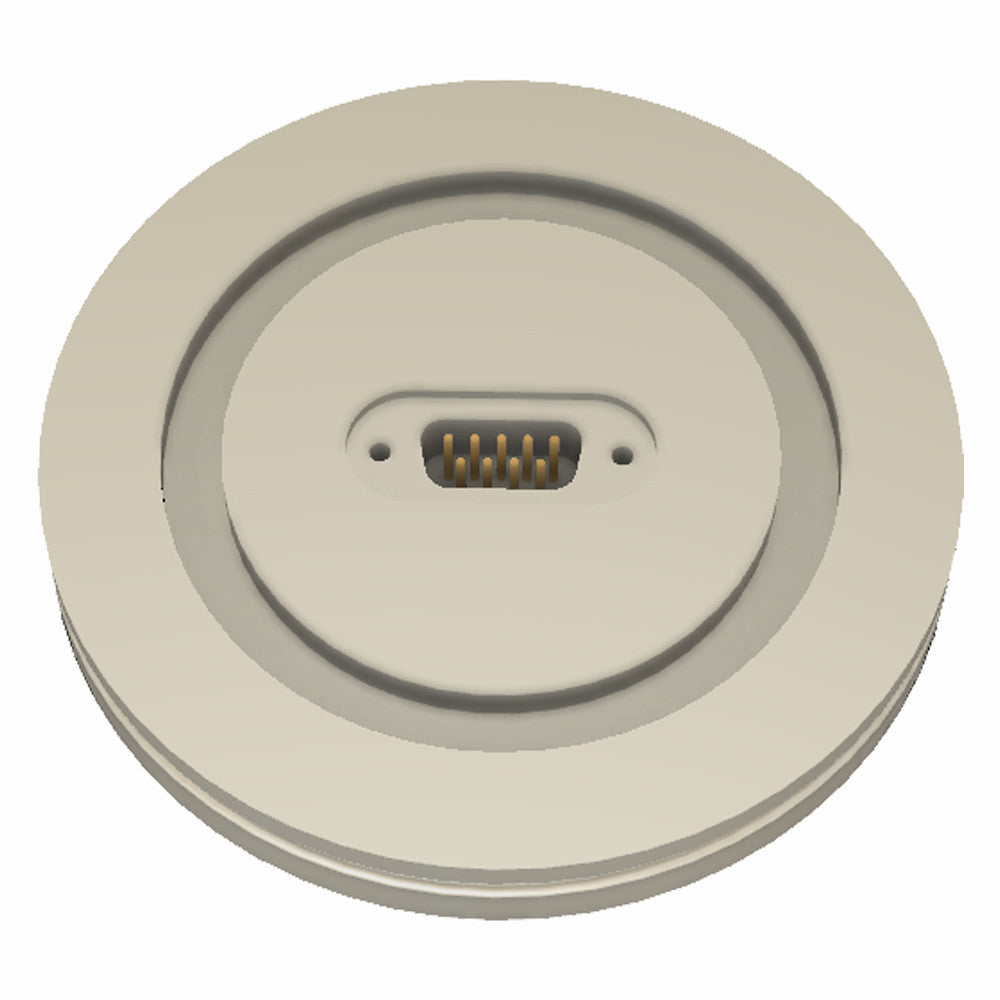

DN63ISO-K FLANGE, 1 x SUB-D 9 WAY FEEDTHROUGH

DN63ISO-K FLANGE, 1 x SUB-D 9 WAY FEEDTHROUGH

Allectra SKU: 210-D09-ISO63
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

• D-TYPE SUB-MINIATURE FEEDTHROUGH • 1 X 9 WAY ON A DN63ISO FLANGE

Specifications

  • Vacuum Leak Rate HV <1x10-8 mbar l/s
  • Size or DN DN63 ISO-K flange
  • Compliance Sub-D, DIN 41652, MIL-C-24308
  • Pin Gender male
  • Conductor Material NiFe (Au plated)
  • Vacuum Seal Glass ceramic
  • Body Material 316 Stainless Steel
  • Voltage Rating 500V
  • Max Current 5A per pin
  • Temperature Range -200°C to 230°C
  • Number of Pins 9
  • Conductor Diameter 1mm
