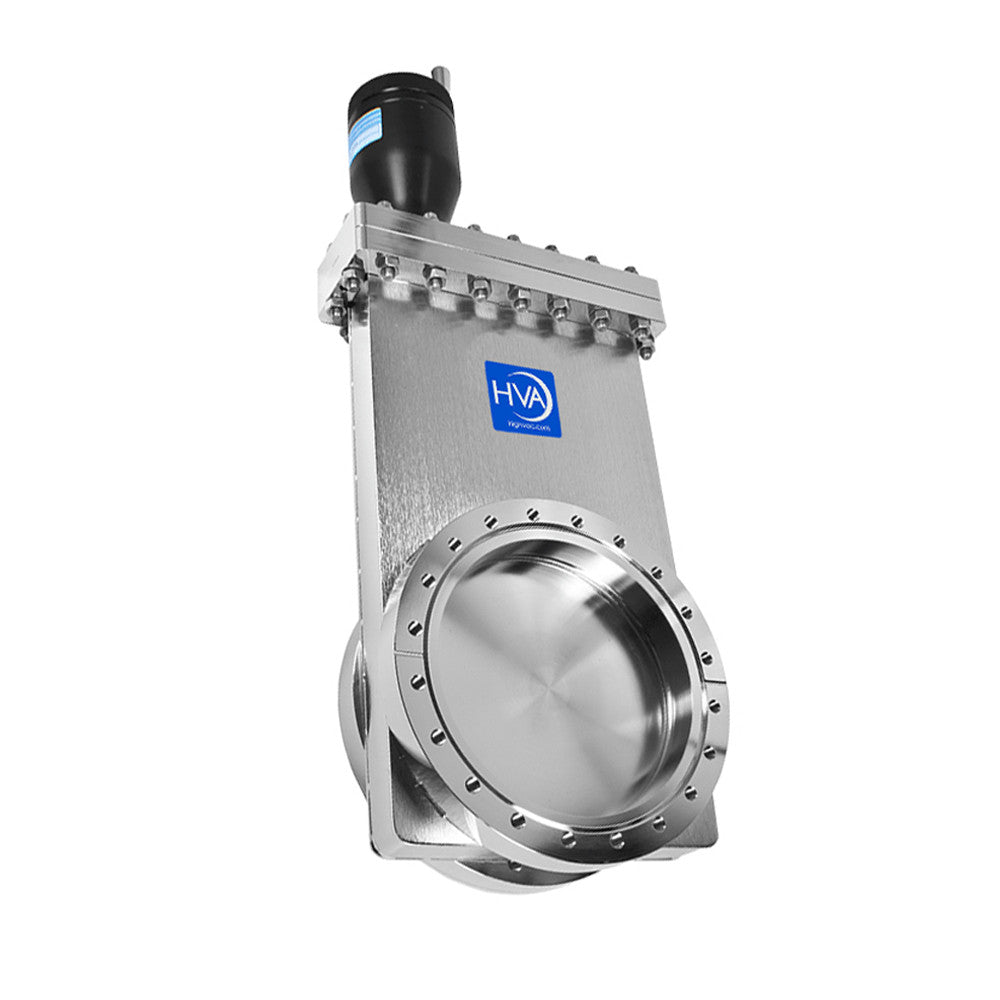

DN160CF HVA UHV Gate Valve, Viton Seal, High Temperature Lubricant, manual operation

DN160CF HVA UHV Gate Valve, Viton Seal, High Temperature Lubricant, manual operation

Allectra SKU: 515-GV-C160
  • In stock, ready to ship
  • Backordered, shipping soon
  • Estimated Leadtime = days
Your inquiry was submitted successfully. You can expect to hear from us shortly.

Specifications

  • Vacuum Leak Rate UHV <5x10-10 mbar l/s
  • Size or DN DN160CF (8” OD flange)
  • Vacuum Seal Viton O Ring Metal Bonnet
  • Body Material Stainless Steel
  • Temperature Range Open 200oC, Closed 150oC
  • Inside Diameter 152.4
  • Thickness 80.5
